Checking Air Gap Of Magnetic Clutch

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

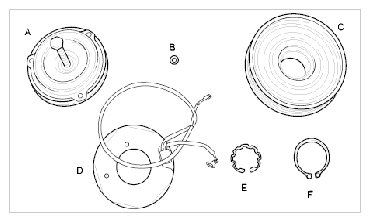

  1. Pressure plate
  2. Spacer
  3. Pulley
  4. Solenoid coil
  5. Seeger circlip ring for pulley
  6. Seeger circlip ring for solenoid coil
    Fig 1: Identifying Magnetic Clutch Components
    G09830288Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Check the air gap between the pressure plate and pulley using a depth gauge.

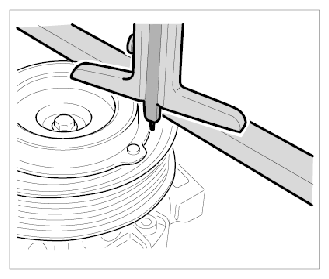

    Fig 2: Checking Magnetic Clutch Air Gap
    G09830289Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Place a rule on the outer edge of the pulley. Use a depth gauge to measure up to the pressure plate. Apply battery voltage to the magnetic clutch and measure the distance (air gap) to the attracted pressure plate. Always measure at least three points on the pressure plate in order to obtain a mean value. Distance: 0.5 mm ± 0.15 mm
  3. If the air gap is not in the tolerance range, it must be adjusted using spacers -B-  .
