Removing Servo Motor For Temperature Mixing Flap

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

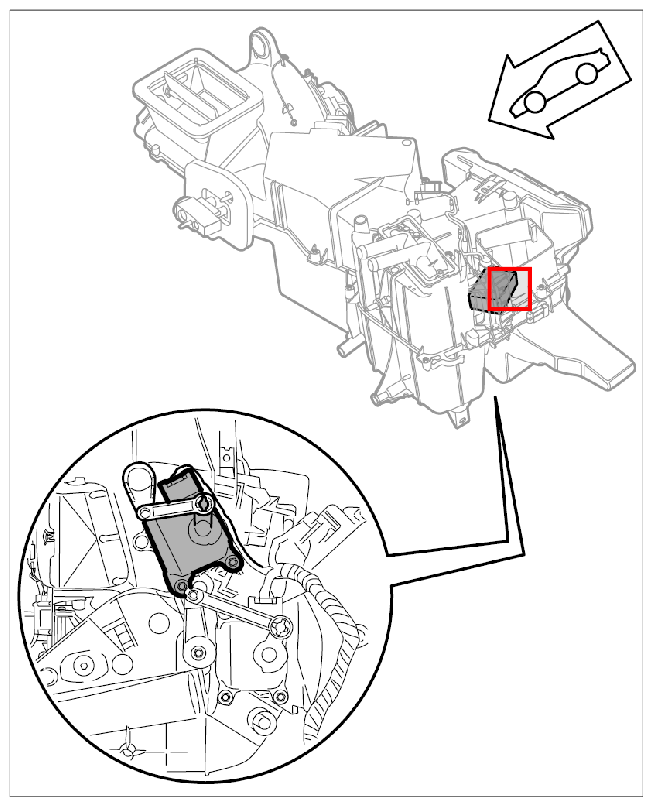

Fig 1: Identifying Temperature Mixing Flap Servo Motor Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Switch off ignition and remove ignition key.
First unscrew the two accessible fastening screws -1- , then shift the servo motor and unscrew the third fastening screw -1- .

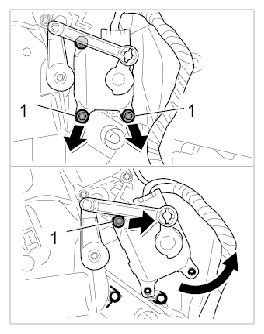

Fig 2: Removing Servo Motor Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release and unplug electric connector -a- .

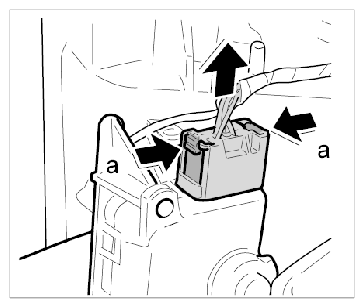

Fig 3: Removing Electric Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Turn the servo motor out until the actuating lever -A- can be disengaged.

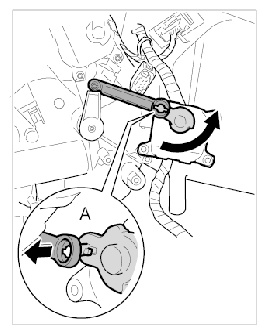

Fig 4: Removing Actuating Lever
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove servo motor.
