Installing Servo Motor For Temperature Mixing Flap

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position servo motor and engage actuating lever -A-  on the servo motor.

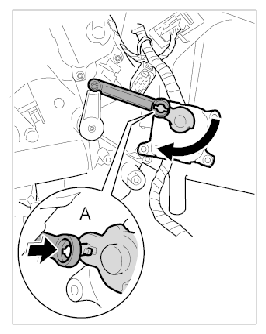

    Fig 1: Installing Actuating Lever On Servo Motor
    G09830253Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Connect electric connector to servo motor until the connector is felt to engage.

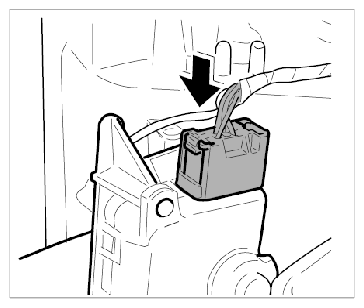

    Fig 2: Installing Electric Connector
    G09830254Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Position servo motor on heater/air-conditioning unit and tighten with the three fastening screws -1-  . → Tightening torque: 1.2 Nm (1.0 ftlb.)+/-0.5 Nm (+/-0.5 ftlb.)
    1. 3.1. First screw in one fastening screw.
    2. 3.2. Turn the servo motor and screw in the remaining two fastening screws.

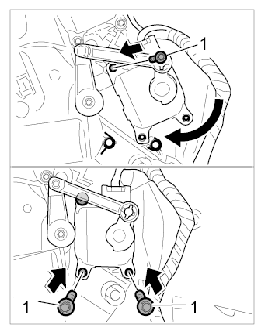

      Fig 3: Installing Servo Motor Fastening Screws
      G09830255Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Switch on ignition and check function of servo motor by adjusting the air conditioning control.
