Removing Footwell/Defrost Servo Motor

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

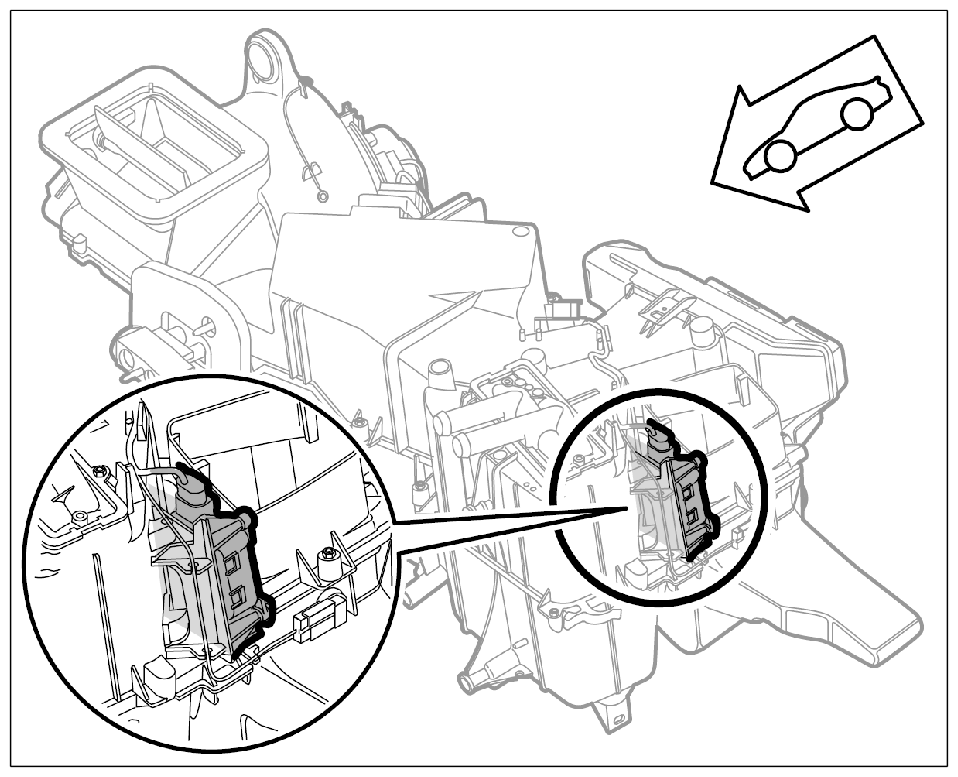

Fig 1: Identifying Footwell/Defrost Servo Motor Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Switch off ignition and remove ignition key.

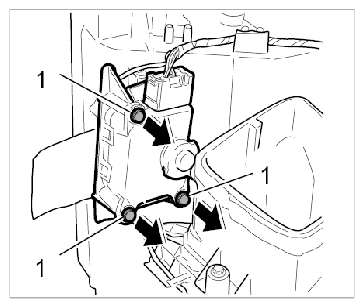

Unscrew the three fastening screws.

Fig 2: Removing Servo Motor Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

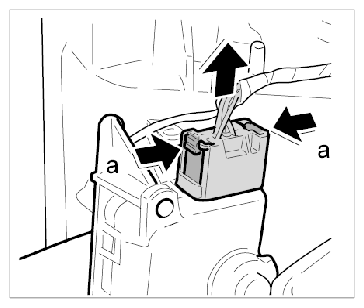

Release and unplug electric connector -a- .

Fig 3: Removing Electric Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

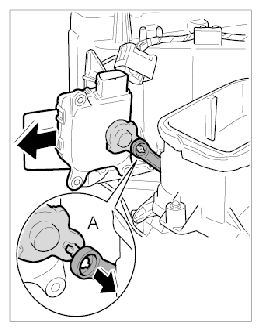

Pull the servo motor out further until the actuating lever -A- can be disengaged.

Fig 4: Removing Actuating Lever
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove servo motor.
