Remove Sun Sensor

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

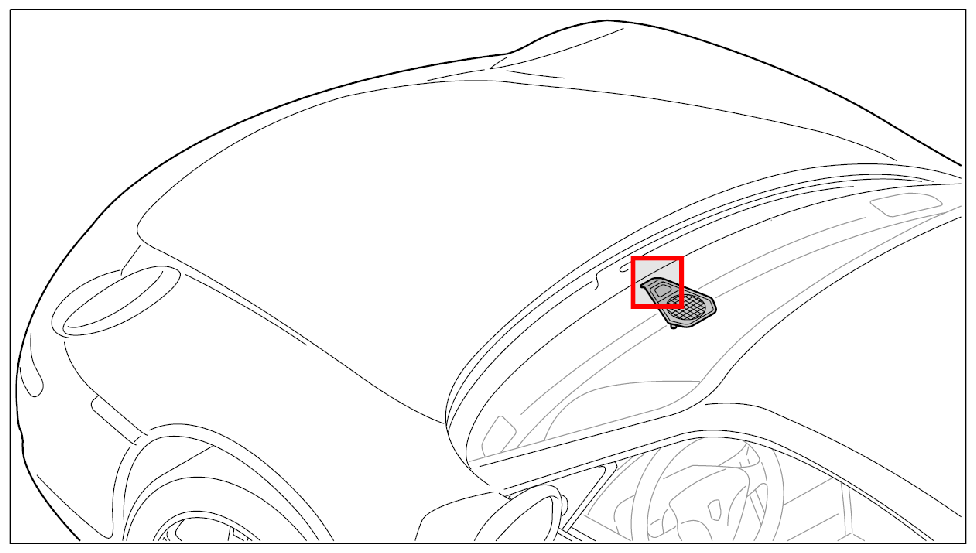

Fig 1: Identifying Sun Sensor Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lift cover on dashboard using plastic spatula and unclip.

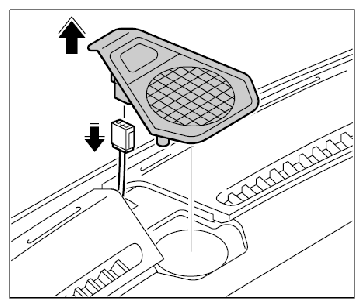

Fig 2: Removing Dashboard Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unplug electrical plug connection.
Carefully pull the three tabs out of the cover and remove the sun sensor.

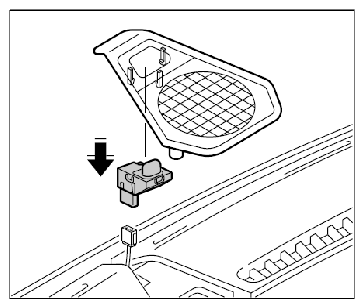

Fig 3: Removing Sun Sensor Cover Tabs
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
