Installing Sun Sensor

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Press sensor into the holder until the sensor lugs engage.

Fig 1: Installing Tabs Into Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Plug in the electrical plug connection.
Position cover and clip into dashboard.

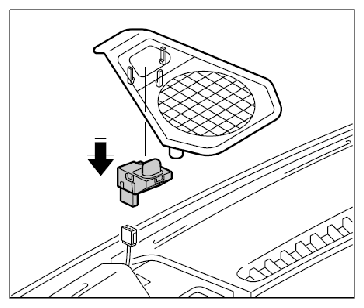

Fig 2: [Positioning Cover]
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
