Removing Air-Conditioning System Regulator

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

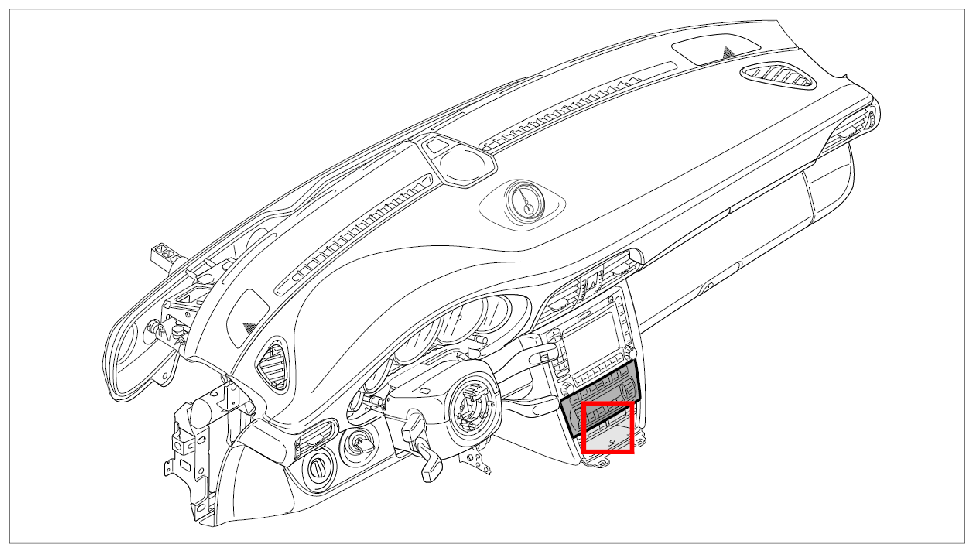

Fig 1: Identifying Air Conditioning Control Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Using a screwdriver, press the side holder to the left and right and pull out the air conditioning control from the installation slot.

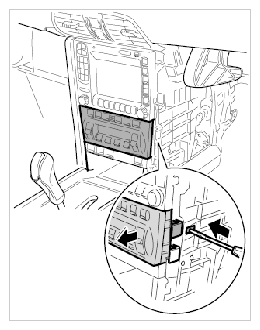

Fig 2: Removing Air-Conditioning Control
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release the electrical -a- and pull off.

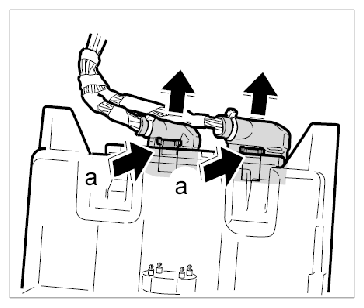

Fig 3: Removing Electric Plug Connectors
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
