Installing Air-Conditioning System Regulator

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

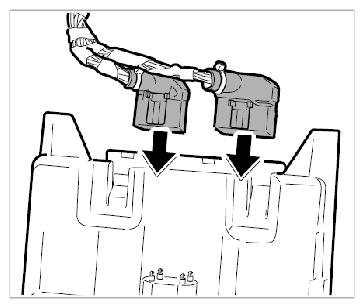

  1. Insert electrical plugs in the air-conditioning system regulator until they are felt to engage.
    Fig 1: Installing Electric Connector
    G09830236Courtesy of PORSCHE CARS NORTH AMERICA, INC.

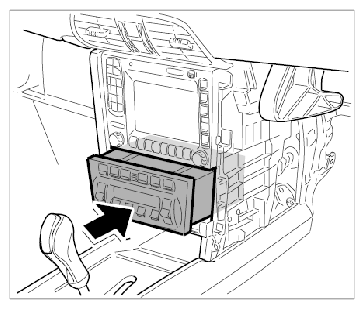

  2. Slide the air-conditioning system regulator into the installation slot until it clicks into place.
    Fig 2: Installing Air-Conditioning System Regulator
    G09830237Courtesy of PORSCHE CARS NORTH AMERICA, INC.
