General Test Prerequisites

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Close doors, windows and sliding roof
Insert temperature probe into center vent
Measure ambient temperature
Open all dashboard vents
Switch on ignition
Press recirculating-air button
Set temperature control to maximum cooling
Switch fresh-air blower to "max"
Start engine
Operate air conditioning while idling
Set engine speed to 2000 RPM (start of time measurement)

If the prescribed nominal values are not reached, the air conditioning must be checked for leaks and repaired.

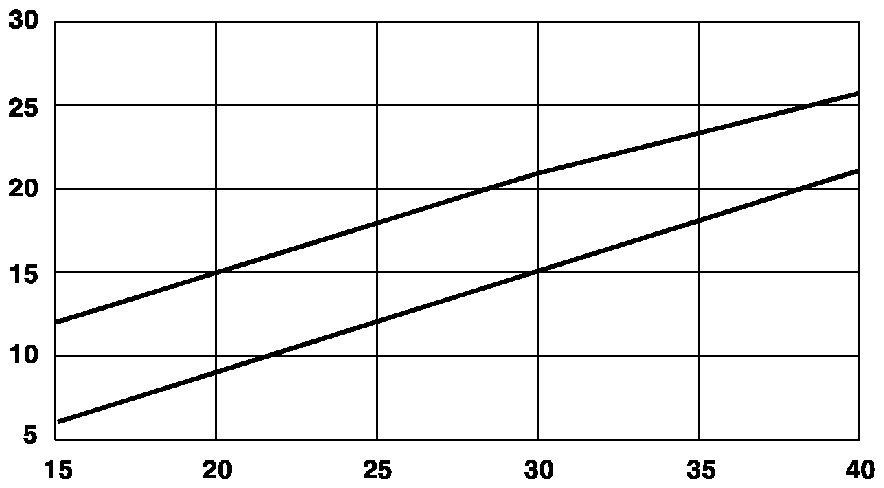

Fig 1: Centre Vent Temperature Versus Ambient Temperature Graph

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

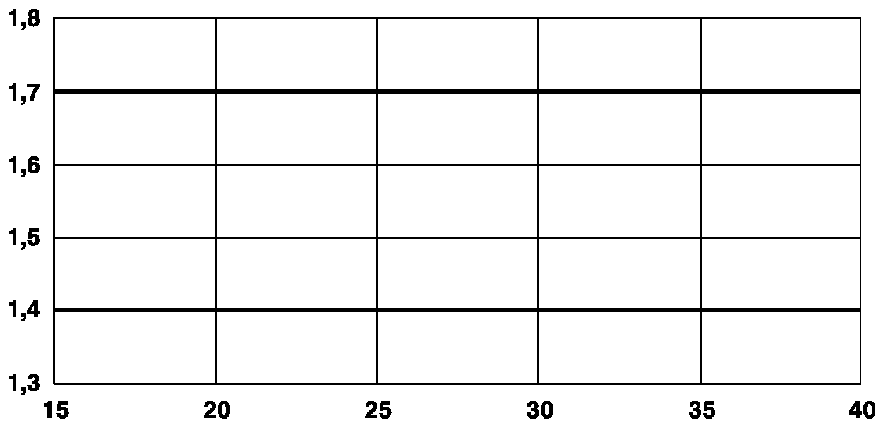

Fig 2: Refrigerant Circuit (High Pressure) Versus Ambient Temperature Graph

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fig 3: Refrigerant Circuit (Low Pressure) Versus Ambient Temperature Graph

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
