Tightening Torques For Air-Conditioning System

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

When fitting the refrigerant lines, the O-rings must always be coated with refrigerant oil.

The extracted refrigerant oil must be disposed of as special-category waste.

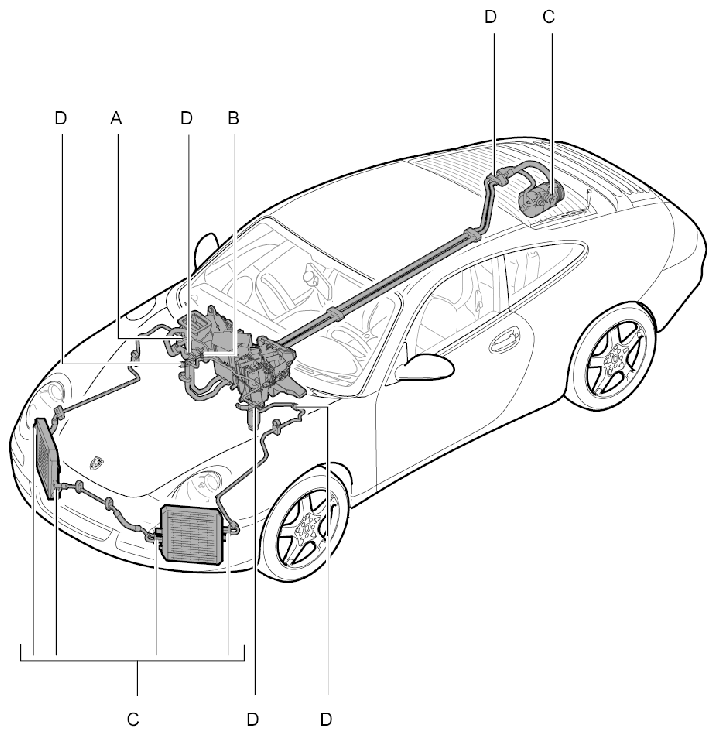

Fig 1: Identifying Air-Conditioning System Components

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

-A- - → M5: 3.5 ftlb.
-B- - → M6: 6.5 ftlb.
-C- - → M8: 10.5 ftlb.
-D- - → M8: 10.5 ftlb.
-E- - → M6: 4.5 ftlb.
-F- - → M8: 10.5 ftlb.
-G- - → M8: 17 ftlb.
-H- - → M10: 19 ftlb.
-I- - → M8: 17 ftlb.
