Installing Hydraulic Pump - Manual Transmission

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Fit the hydraulic pump and secure it at the front and rear. Fit the pressure and return lines.
1. 1.1. Fit the hydraulic pump/reservoir assembly into the vehicle.
  Screw in two M8 Torx screws -2- on the front of the hydraulic pump and one M6 Torx screw on the back (rear fastening point).

  Tighten M8 Torx screws. → Tightening torque: 23 Nm (17 ftlb.)

  Tighten M6 Torx screw. → Tightening torque: 10 Nm (7.5 ftlb.)

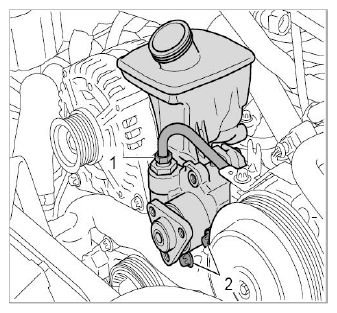

  Fig 1: Identifying Hydraulic Pump/Pressure Line
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 1.2. Secure the pressure line -1- to the hydraulic pump. Counter at the connection piece (a/f 27 mm) when tightening the pressure line -1- .
  → Tightening torque: 35 Nm (26 ftlb.)
3. 1.3. Remove stoppers from the tandem pump and connect the return lines -4 and 3- (in this sequence).
  Connect the pressure line -1- at the pressure control valve -2- .

  Check that the plug-in couplings are locked correctly.

  Pull on the lines (at -1- on the connector) to check that the couplings are locked correctly (push and pull gently in axial direction).

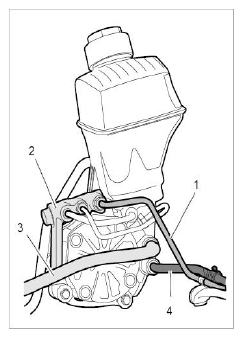

  Fig 2: Identifying Return Lines And Clutch Pressure Line
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
