WM 489819 Removing And Installing Hydraulic Pump - PDK And Manual Transmission (Turbo Coupe, Turbo S Coupe, Turbo CABRIO, Turbo S CABRIO): Information

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

A tandem hydraulic pump -1- is installed on vehicles with manual transmission, while a solo hydraulic pump -2- is installed on PDK vehicles.

The hydraulic pump -1 and 2- is removed and installed together with the supply tank (as an assembly).

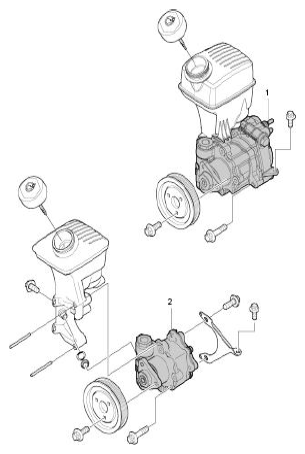

Fig 1: Identifying Solo And Tandem Hydraulic Pump Components

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tandem hydraulic pump (manual transmission version for steering and clutch servo)
Solo hydraulic pump (PDK version for steering)
