Installing Reservoir For Hydraulic Pump

Information

Ensure absolute cleanliness!

Ensure absolute cleanliness if the reservoir is disconnected from the hydraulic pump.

If dirt gets into the reservoir, this can cause the hydraulic pump to stop working.

Information

Driving in and securing straight pins

If the straight pins are driven in the wrong direction, this will widen the axial stops.

The straight pins must only be driven in towards the back of the hydraulic pump.

Always use new straight pins. Use a drop of Loctite in the bores to secure the straight pins.

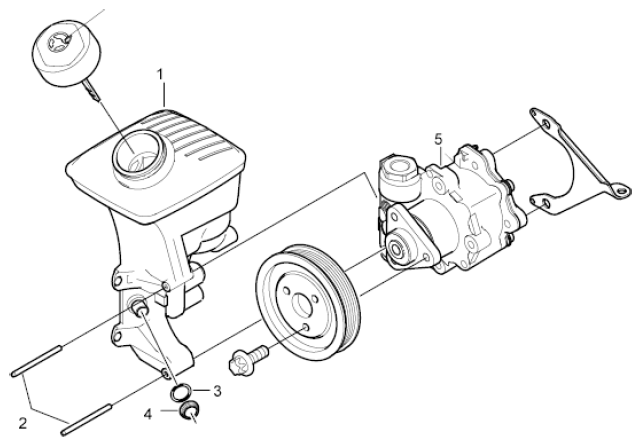

Fig 1: Exploded View Of Hydraulic Pump Assembly

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. - Reservoir
2. - Straight pin (2 ea.)
3. - O-ring
4. - Retaining ring
5. - Hydraulic pump

1. Replace sealing ring and retaining ring.

   Information

   Installing O-ring

   Always replace the O-ring -3-  between the reservoir -1-  and hydraulic pump -5-  .

   Make sure that the reservoir -1-  is fitted without tension on the hydraulic pump -5-  .

   Leaks can occur if the O-ring -3-  becomes jammed.

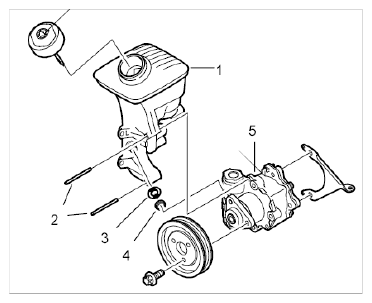

   Fig 2: Identifying Sealing Ring (3)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Fit the reservoir on the hydraulic pump.
   • 2.1. Fit the reservoir on the hydraulic pump without tension.
   • 2.2. Drive in straight pins.

     Secure the straight pins by putting a drop of Loctite in the bores of the hydraulic pump -2- (-arrows-)  .

     Drive in the straight pins towards the back of the hydraulic pump -2-  using a suitable mandrel that will not widen the bore hole.

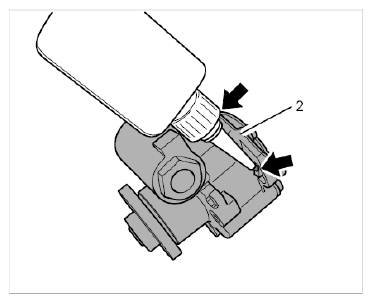

     Fig 3: Securing Straight Pins On Hydraulic Pump

     Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   • 2.3. Fit holder -1-  for hydraulic pump -2-  .

     Fit holder -1-  and screw in and tighten screws -3-  .

     →Tightening torque: 23 Nm (17 ftlb.)

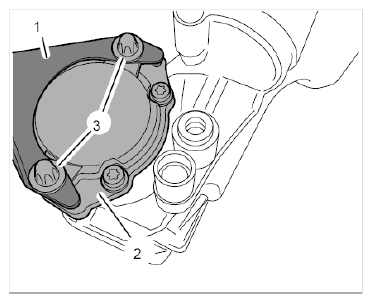

     Fig 4: Identifying Holder For Hydraulic Pump
