WM 489719 Removing And Installing Reservoir For Hydraulic Pump (Except Turbo Coupe, Turbo S Coupe, Turbo S Coupe "Ed. 918 SPYDER", Turbo CABRIO, Turbo S CABRIO, Turbo S CABRIO "Ed. 918 SPYDER", Gt3, Gt2, Gt3 RS, Gt2 RS, Gt3 RS 4.0): Information

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

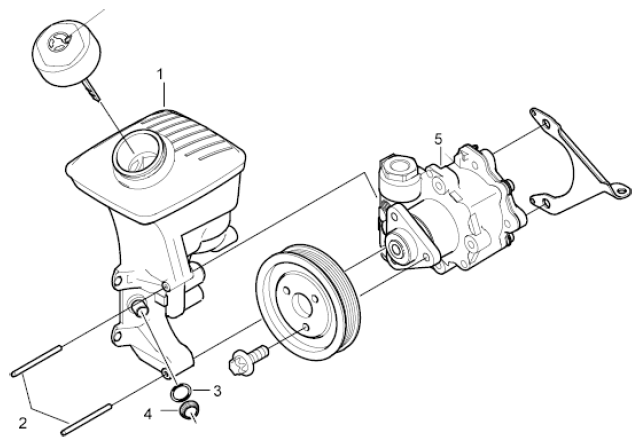

Fig 1: Exploded View Of Reservoir And Hydraulic Pump Assembly

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

- Reservoir
- Straight pin (2 ea.)
- O-ring
- Retaining ring
- Hydraulic pump
