WM 489455 Replacing Steering Pressure Line (Except CARR. GTS Coupe, CARRERA Black Edition, CARR. Coupe "Edition Style", CARR. GTS CABRIO, CARRERA CABRIO Black Edition, CARR. CABRIO "Edition Style", Turbo S Coupe "Ed. 918 SPYDER", CARRERA 4 GTS, Turbo S CABRIO "Ed. 918 SPYDER", CARRERA 4 GTS CABRIO, Gt2 RS, Gt3 RS 4.0): Information

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Replacing the steering pressure line -2- refers to the pressure hose/pressure line assembly.

The steering pressure line -2- is fitted on the steering gear and also on the plug-in coupling (connection point) in the rear sill area.

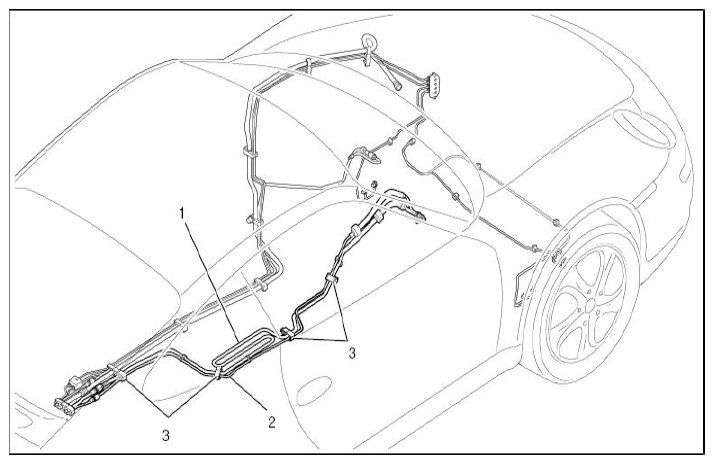

Fig 1: Identifying Hydraulic Lines Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Steering return line
Steering pressure line
Line bracket
