Notes For Sliding Piece And Airbag Contact Unit
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

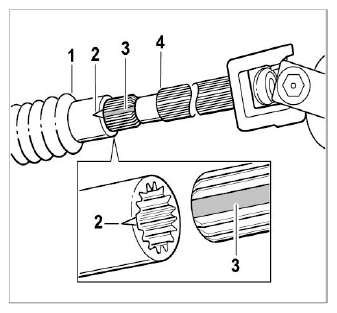

If the sliding piece -1- was pulled off the steering shaft -4- , the notch -2- must point towards the tooth gap -3- during assembly.
If the steering wheel was not fixed before the steering gear was removed, the position of the contact unit (spring) may no longer be correct. In this case, remove steering wheel and move contact unit to center position because otherwise the spring will be damaged.
