WM 489019 Removing And Installing Power-Steering Gear (Except CARR. GTS Coupe, CARRERA Black Edition, CARR. Coupe "Edition Style", CARR. GTS CABRIO, CARRERA CABRIO Black Edition, CARR. CABRIO "Edition Style", Turbo S Coupe "Ed. 918 SPYDER", CARRERA 4 GTS, Turbo S CABRIO "Ed. 918 SPYDER", CARRERA 4 GTS CABRIO, Gt2 RS, Gt3 RS 4.0): Information

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

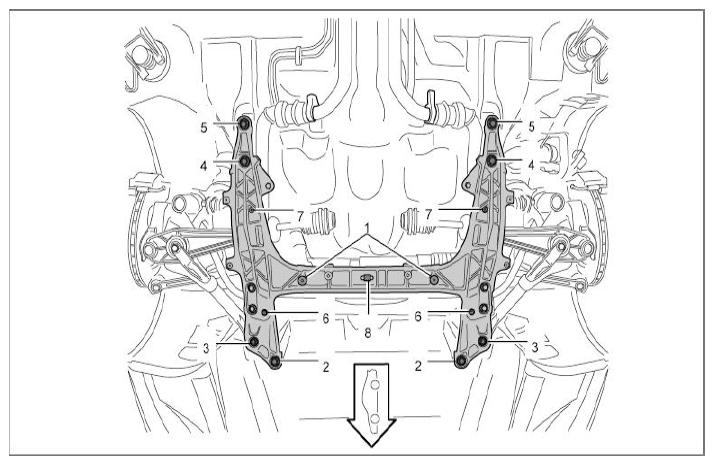

Fig 1: Front-Axle Cross Member Bolts Tightening Sequence

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

To remove and install the power-steering gear, lower the front-axle cross member slightly at the front (approx. 50 to 60 mm). This is necessary in order to make room in this area.
