Contact Unit In Centre Position
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

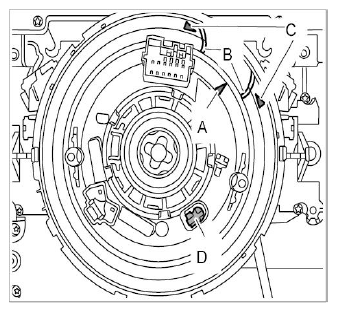

- To position the airbag contact unit in center position, press the locking element -D-
and turn the rotor -A-
carefully as far as it will go to the left.
Then turn the rotor -A- carefully (from the left stop) to the right, approx. 3.5 to 3.75 turns, until the band printed on one side is visible in the window.
Turn front wheels to straight-ahead position before fitting the steering wheel (steering shaft mounted on steering gear).
- 3. Fit the tie-rod end on the steering arm.
On the 911 Turbo, fit the spoiler at the diagonal arm (air guide for the brake cooling system).
- 4. Repeat the procedure on the other side.

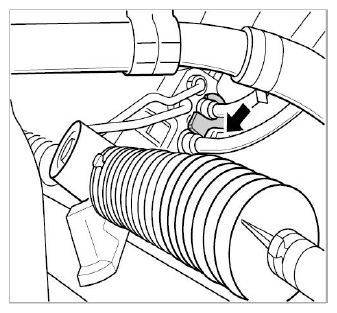

- 5. Fit the feed and return lines at the steering gear -arrow- .
- 6. Secure the final drive to the front-axle cross member. To do this:

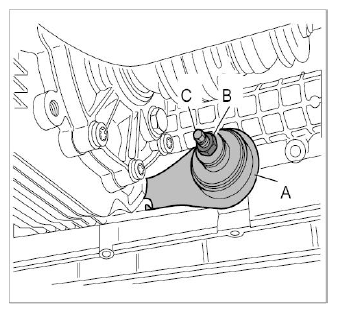

Screw studs -C- (on both sides) through the transmission support -A- and into the front-axle cross member.
Screw fastening nuts -B- onto the studs -C- and tighten them.
Location Description Type Basic value Tolerance 1 Tolerance 2 Stud on front-axle cross member Tightening torque 20 Nm (15 ftlb.) Fastening nut on stud Tightening torque 65 Nm (48 ftlb.) - 7. Install cover for fuel tank and fit longitudinal restraining straps (two M8 screws) -arrows-
.
→ Tightening torque: 23 Nm (17 ftlb.)

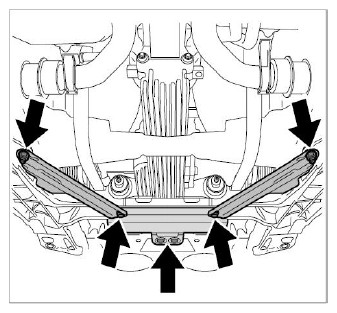

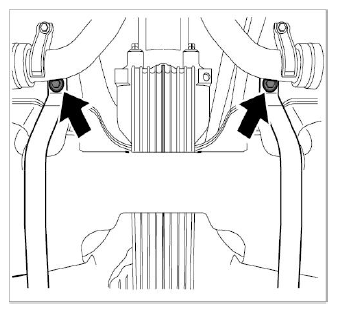

- 8. Fit crash stop and diagonal braces -arrows-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Location Description Type Basic value Tolerance 1 Tolerance 2 Diagonal braces to front-axle cross member, M12 x 1.5 Hexagon nuts Tightening torque 100 Nm (74 ftlb.) Diagonal braces/crash stop to front-axle cross member, M12 x 1.5 Hexagon-head bolts Tightening torque 100 Nm (74 ftlb.) Crash stop to body, M12 x 1.5 Hexagon-head bolts Tightening torque 100 Nm (74 ftlb.)
