Subsequent Work
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
- Install clutch pedal on vehicles with manual transmission → 300519 REMOVING AND INSTALLING THE CLUTCH PEDAL .

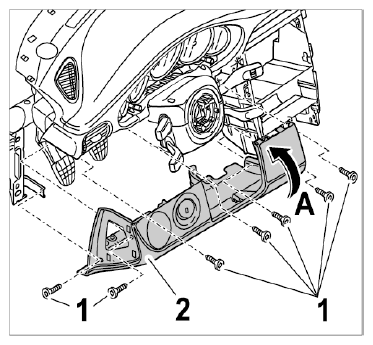

- Mount linings under dashboard → 701919 REMOVING AND INSTALLING TRIM UNDER DASHBOARD .
- Install main headlight switch. To do this, insert the connector until it is felt to engage. Push in the light switch to the stop and turn the rotary switch anti-clockwise.
- Install steering wheel → 481019 REMOVING AND INSTALLING STEERING WHEEL .
- Install airbag unit for driver → Installing Driver's Airbag Unit
- Connect the battery → 2706IN WORK INSTRUCTIONS AFTER DISCONNECTING THE BATTERY
.
Information
If the steering column is replaced (new steering column), the electric steering column locking mechanism (ELV) must be taught with the PIWIS Tester in the PAS system, menu Learning functions >> Teach ELV << . You can get the necessary Teach Enable Code (TEC code) from IPAS or from your importer using the vehicle identification number.
- Read out all fault memories and delete them, if necessary.
- Carry out suspension alignment.
- After the suspension alignment, with the position of the wheels >> straight ahead << calibrate the steering-angle sensor on the measuring platform.
- Carry out a test drive and check the operation (continuous easy steering movements, steering column adjustment, electronic steering column lock).
