Removing The Steering Column

→ Switch off ignition and remove ignition key or remote control (hand-held transmitter).

→ A power supply (e.g. battery charger) must not be connected to the external power supply/jump-lead starting terminals.

→ Disconnect the battery and insulate the ground strap so that all contact with a ground carrier is avoided.

→ Wait 1 minute after disconnecting the battery.

→ Only pull off connector on the triggering unit after the waiting time has elapsed.

→ Make sure that no foreign objects are located in front of the airbag unit during installation.

→ Replace damaged parts during removal.

→ Always position airbag units so that the blow-out opening is facing upwards, e.g. crest on driver's airbag.

→ Do not position anything on the airbag units.

→ If removed for an extended period, the airbag units must be stored in a safe place.

→ Airbag units must not come into contact with grease, oil, detergents, liquids, or similar substances.

→ Do not expose airbag units to temperatures above 90°.

→ Do not remove the short-circuit spring on the plug-in contacts.

→ Ignition and preparations may only be carried out by skilled staff, supervised by a second responsible person.

→ Before disposal, the airbag unit must be rendered harmless by electrical ignition performed in accordance with all precautionary measures, thereby preventing it from being used incorrectly.

Information

• The height adjustment (steering wheel) of the steering column must be in the lower stop and the locking lever closed.
• The electronic locking unit (ELV) must be open (ignition key plugged in, then disconnect battery).

As a spare part, the steering column -A-  is delivered complete with steering shaft.

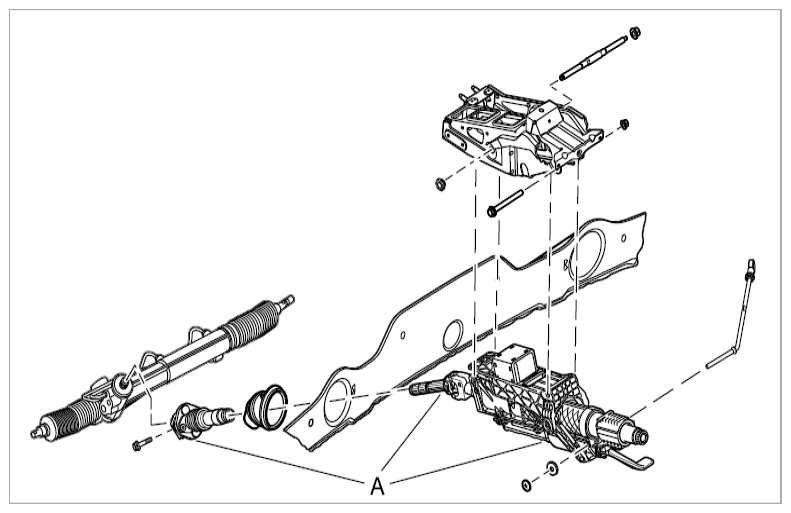

Fig 1: Identifying Steering Column Components

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Steering column with steering shaft

1. Remove trim panel of steering column switch and remove steering column switch → WM 945019 REMOVING AND INSTALLING STEERING-COLUMN SWITCH .

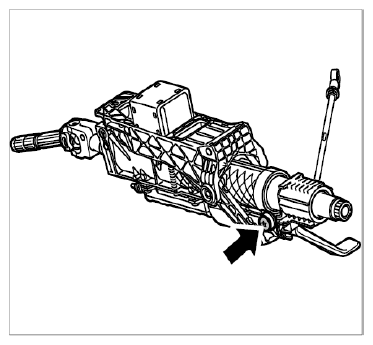

2. Loosen strut on retaining frame (arrow shows mount on steering column). → Strut on steering column
   Fig 2: Locating Strut On Steering Column

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Remove KESSY/PAS control unit.

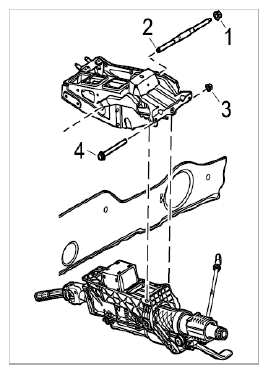

4. Loosen lower steering column mount. To do this, loosen the lock nut -1-  by approx. 3 turns. Then unscrew the pedal bearing axle on the hexagon -2-  by approx. 2 turns (anti-clockwise).
   Fig 3: Identifying Steering Column Mounting Bolts

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Loosen upper steering column mount (loosen lock nut -3-  /remove hexagon-head bolt -4-  ) and extend the steering column.
6. Remove front underbody panel.

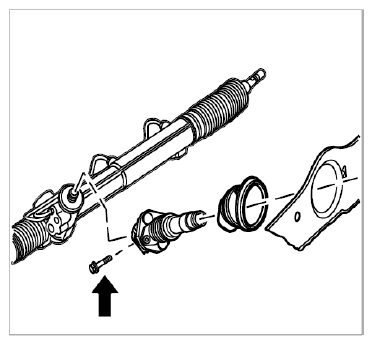

7. Loosen fastening screw -arrow-  and pull off steering shaft (universal joint) on the steering gear.
   Fig 4: Pulling Off Steering Shaft (Universal Joint)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
