Removing And Installing Trims

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Adjust steering wheel to lower position.
For the top trim panel, unscrew the two Torx screws (T10) -A- .

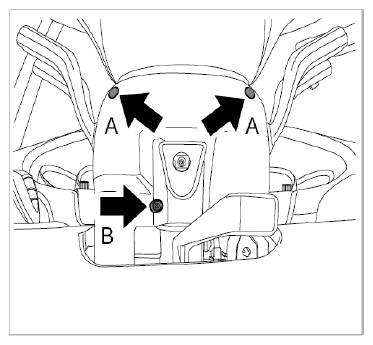

Fig 1: Locating Trims Fastening Points
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull upper trim panel upwards, disconnect plug, remove wiring harness from the guide and unclip leather trim panel -arrows- .

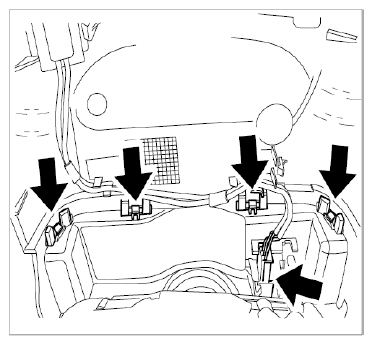

Fig 2: Locating Clip Points On Top Trim Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
For removing the lower trim panel, unclip right wiring harness and unscrew the Torx screw (T10) -B- .

Install in reverse order. Check wiring harness for correct routing.
