Removing ELV Control Unit

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

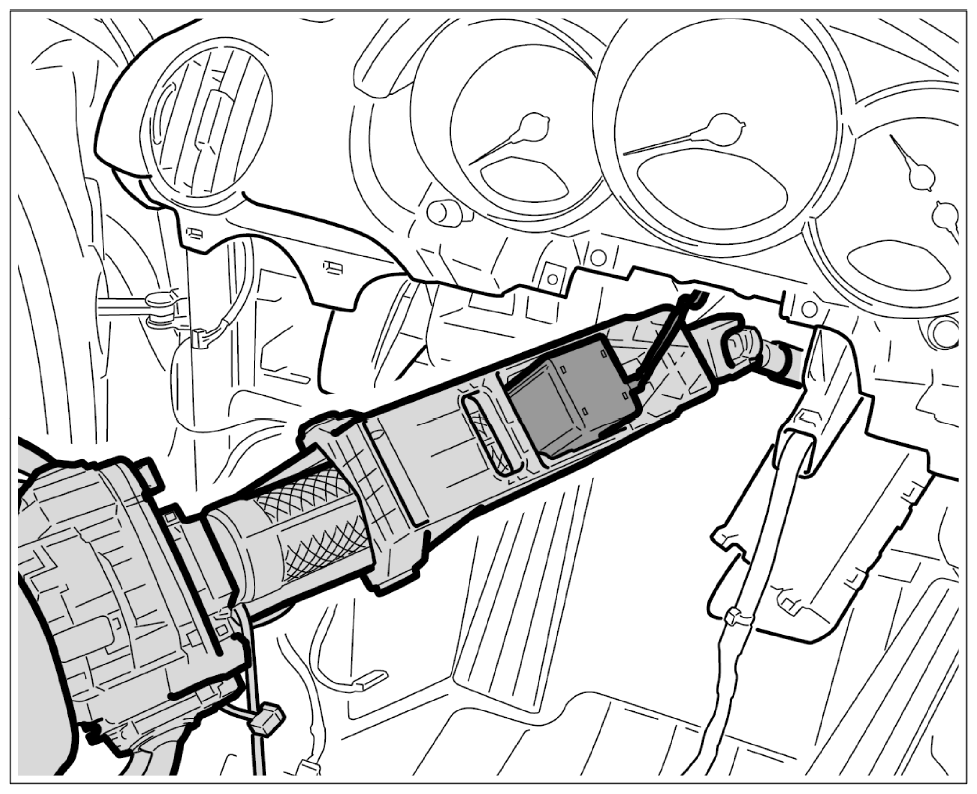

Fig 1: Identifying Installation Position Of ELV Control Unit

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

The ELV control unit is engaged in the steering column and is clamped securely with a fastening screw.

The fastening screw comes with the ELV control unit.

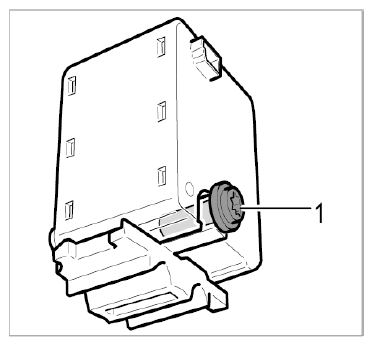

Fig 2: Identifying Fastening Screw For ELV Control Unit

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw the fastening screw -1- as far as it will go into the ELV control unit.

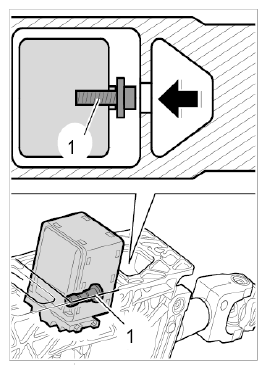

Fig 3: Identifying ELV Control Unit Fastening Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Slide the ELV control unit back, disengage it from the steering column and remove it by moving it upwards.

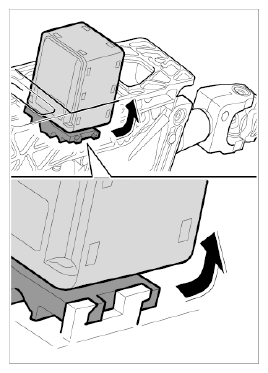

Fig 4: Disengaging ELV Control Unit From Steering Column
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
