Installing ELV Control Unit

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

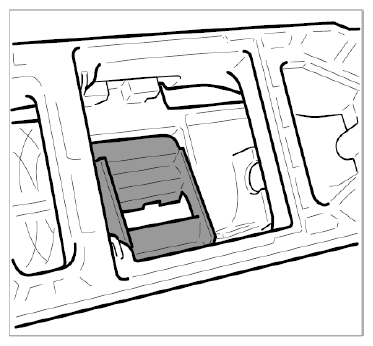

Check the installation position of the plastic guide for the ELV control unit and insert the plastic guide into the opening in the steering column.

Fig 1: Checking Installation Position Of Plastic Guide
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

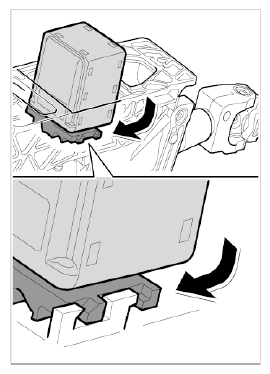

Position ELV control unit on the steering column and engage it by pressing it forward.

Fig 2: Engaging ELV Control Unit In Steering Column
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

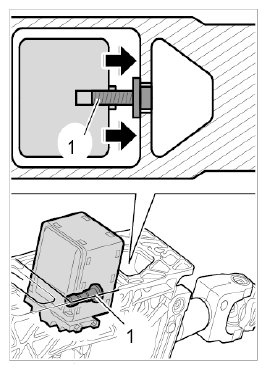

Unscrew the fastening screw -1- on the ELV control unit until the fastening screw -1- connects with the steering column. → Tightening torque: 6 Nm (4.5 ftlb.)

Fig 3: Connecting ELV Control Unit On Steering Column
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
