911 C2/C4 (3.6 l) standard brakes (grey cast iron) - as of 2009 model
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
| Front axle | Rear axle |
|---|---|
Characteristics:
Symptom: Brake noise (squealing) on front axle during braking, just before the vehicle stops, when the brake pedal is pressed lightly. Remedial action: Remedial action 1

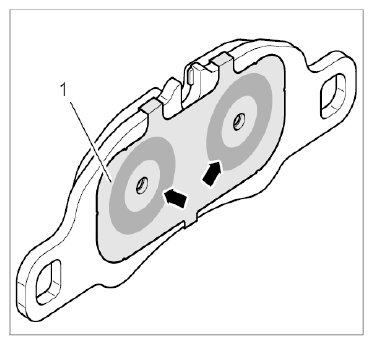

Brake-pad backing plate with small sliding plate Remedial action 2 Install brake pads with a large sliding plate (on the backing plate) -1- . These brake pads with a large sliding plate (on the backing plate) -1- have integrated grease pockets. As a result, the contact surface area of the brake pistons does not need to be greased with Interflon HT . Brake-pad backing plate with large sliding plate References:
|
Characteristics:
Complaints/symptom: None |
