Plug-in couplings up to model year 2008

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

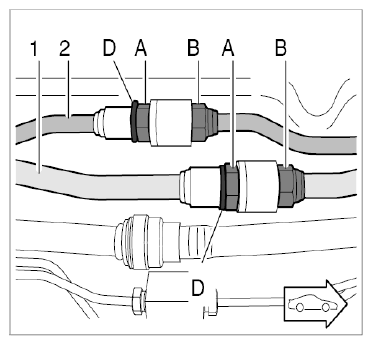

Plug-in coupling is loosened by screwing it apart. (Remove circlip -D- /turn at the threaded joint -A- and counter at the hexagon on the plug-in coupling -B- at the same time).

Fig 1: Loosening Plug-In Coupling

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

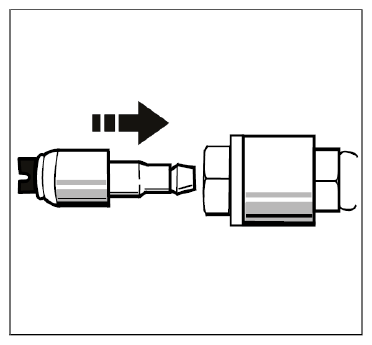

Lines are joined by plugging them together.

The plug-in coupling must first be screwed together (with the retaining collar).

New plug-in couplings are already screwed together.

Fig 2: Connecting Line

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
