Plug-in coupling components - as of model year 2009

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connector (with line)
  2. Plug-in sleeve (with line)
  3. Loosening sleeve
  4. 60° chamfer
  5. Axial spring (dirt seal and pretension element)
  6. Support ring
  7. O-ring/support ring assembly (item 7) = system seal
  8. Retaining ring (for locking)
  9. Base ring (for locking)

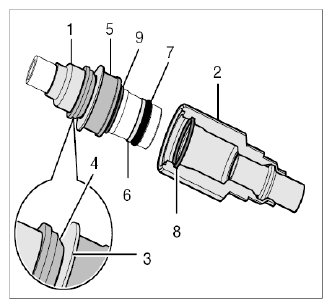

    Fig 1: Identifying Plug-In Coupling (As Of Model Year 2009)
    G09825473Courtesy of PORSCHE CARS NORTH AMERICA, INC.
