Information on steering and clutch lines
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

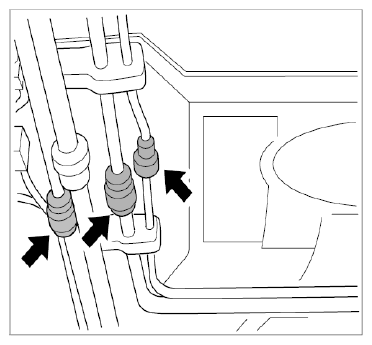

The plug-in lines (plug-in couplings) for the steering and clutch hydraulics -arrows- have been changed. Introduction from model year 2009 onwards.
Plug-in couplings -arrows- are no longer loosened/disconnected by screwing them apart.
The lines are now pulled apart after releasing the plug connection. Use loosening tool 9780 for releasing plug connections.
Do not use any other (commercially available) loosening tools! There is a danger of damaging the plug connection (making it necessary to replace the line).
