Lifting the vehicle

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Inappropriate raising of the vehicle or inaccuracy driving onto the platform.

Risk of damage to property, e.g. damage to door sills and side member panels.

→ Lift vehicle only at the take-up points shown.

→ Make sure the screw connections for the diagonal braces are accessible.

→ When driving onto a lifting platform, ensure that there is sufficient distance between the lifting platform and the vehicle.

→ In order to avoid damage to the side members and side member panels, the mounting plates of the platform lift must be raised.

→ Under no circumstances should the vehicle be lifted by the engine, transmission or axles.

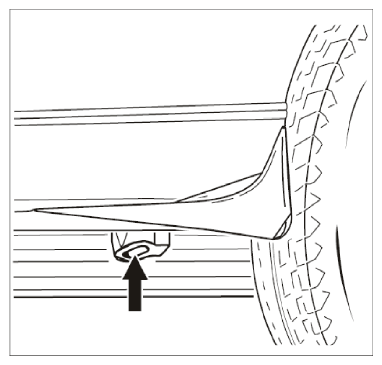

Align the support plate of the lifting platform so that it lines up with the illustrated jacking point -arrow- . Repeat the procedure on the other side.

Fig 1: Locating Front Mounting Point

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

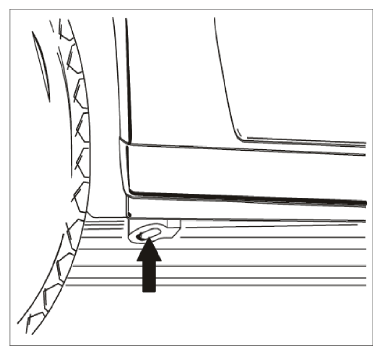

Align the support plate of the lifting platform so that it lines up with the illustrated jacking point -arrow- . Repeat the procedure on the other side.

Fig 2: Locating Rear Jacking Point

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
