Cylinder Head, Camshafts, Camshaft Housing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Cylinder head

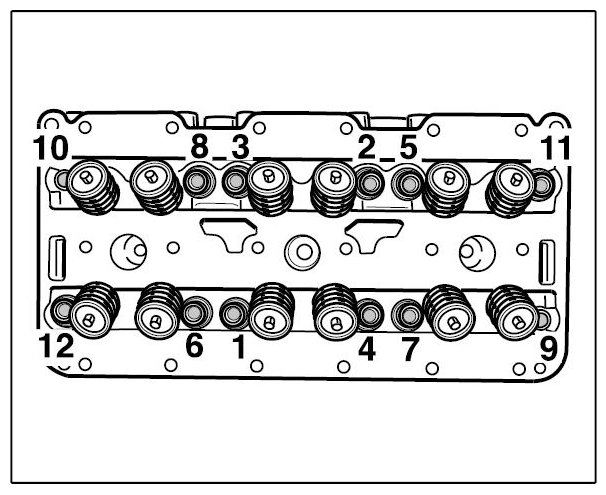

Fig 1: Tightening Sequence For Cylinder Head Nuts
G09819210Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Camshaft housing

Fig 2: Tightening Sequence For Camshaft Housing
G09819211Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Designation Thread Method Value Applies to engine Note
M97/77 and M97/74 - 997 GT3 M97/77R - 997 GT3 RS
Cylinder head nut M10 Initial tightening 30 Nm (22 ft. lb.) X X Observe tightening sequence -item 1 - 12-
Coat sealing surface and threaded bolt lightly with engine oil.
M10 Loosen nuts
M10 Joining torque 20 Nm (15 ft. lb.)
M10 Subsequent tightening 20 Nm (15 ft. lb.)
M10 Final tightening torque angle 120° ± 2°
Guide/tensioning rail to crankcase bolt a/f 8 (1)) M16 x 1.5 Torque 31 Nm (23 ft. lb.) X X Replace sealing ring.
Guide/tensioning rail to chain housing M16 x 1.5 Torque 31 Nm (23 ft. lb.) X X
Oil guide to camshaft housing M5 - 8.8 Torque 7 X X Use magnetic wrench insert.
Camshaft controller to intake camshaft M12 x 1.5 x 130 (10.9) Initial tightening 50 Nm (37 ft. lb.) X X Replace screw and friction plate
Lightly oil the sealing surface
Torque angle 110° ± 5°
Camshaft controller to outlet camshaft M12 x 1.5 x 130 (12.9) Initial tightening 50 Nm (37 ft. lb.) X X Replace screw and friction plate
Lightly oil the sealing surface
Torque angle 140° ± 5°
Vacuum pump driver to outlet camshaft for cyl. 1-3 M6 x 55 (12.9) Initial tightening 10 Nm (7.5 ft. lb.) X X Replace screw
Lightly oil the sealing surface
Centre driver using special tool
Torque angle 120°
Camshaft bearing cover M6 x 30 - 10.9 Torque 13 Nm (9.5 ft. lb.) X X
Guide rails M6 x 25 - 10.9 Torque 10 Nm (7.5 ft. lb.) X X
Camshaft housing to cylinder head M8 - 10.9 Initial tightening 23 Nm (17 ft. lb.) X X Observe tightening sequence -item 1-18-
Lightly oil thread and bearing surface
Final tightening 28 Nm (21 ft. lb.)
Camshaft housing cover M6 - 10.9 Torque 10 Nm (7.5 ft. lb.) X X Tighten evenly from the inside out.
Drei Bond 2210 sealant
Solenoid hydraulic valve for intake camshaft control M6 - 8.8 Torque 10 Nm (7.5 ft. lb.) X X Replace O-ring
Solenoid hydraulic valve for outlet camshaft control M5 - 8.8 Torque 6 Nm (4.5 ft. lb.) X X Replace O-ring
Vacuum pump flange to cylinder head M6 - 10.9 Torque 10 Nm (7.5 ft. lb.) X X
Vacuum pump to flange M6 - 10.9 Torque 13 Nm (9.5 ft. lb.) X X
Vacuum line to vacuum pump M6 - 10.9 Torque 10 Nm (7.5 ft. lb.) X X Replace O-rings
Cover on cylinder head M6 - 10.9 Torque 10 Nm (7.5 ft. lb.) X X Replace O-ring
(1) a/f = wrench size (width across flats)
