Group 19 - Cooling

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Coolant pump, coolant regulator housing:

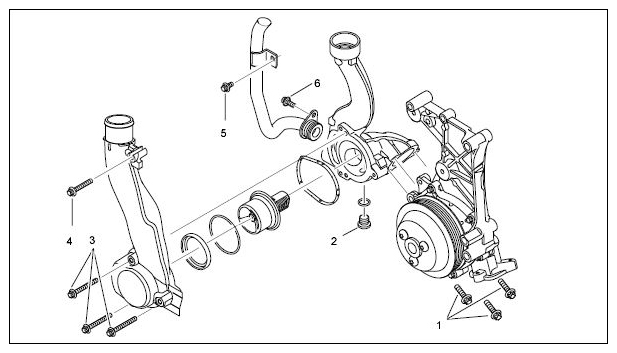

Fig 1: Identifying Thermostat Components

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screw, M6 x 25 → Tightening torque: 13 Nm (9.5 ft. lb.)
Drain plug, M14 x 1.5 for coolant in coolant regulator housing - replace sealing ring → Tightening torque: 25 Nm (19 ft. lb.)
Fastening screw, M6 x 50, coolant regulator housing cover → Tightening torque: 13 Nm (9.5 ft. lb.)
Fastening screw, M6 x 40 → Tightening torque: 13 Nm (9.5 ft. lb.)
Fastening screw, M6 x 12 → Tightening torque: 13 Nm (9.5 ft. lb.)
Fastening screw, M6 x 16 → Tightening torque: 13 Nm (9.5 ft. lb.)

Bracket for coolant pump, coolant pipes with collection unit:

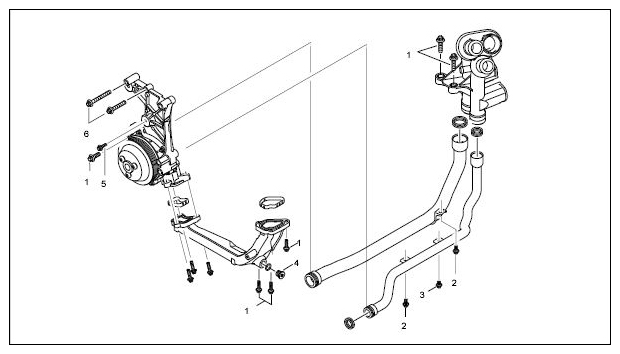

Fig 2: Identifying Coolant Pump And Fasteners

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screw, M6 x 25 → Tightening torque: 13 Nm (9.5 ft. lb.)
Fastening screw, M6 x 50 → Tightening torque: 13 Nm (9.5 ft. lb.)
Fastening screw, M6 x 12 → Tightening torque: 13 Nm (9.5 ft. lb.)
Fastening screw → Tightening torque: 13 Nm (9.5 ft. lb.)
Fastening screw, M6 x 20 → Tightening torque: 13 Nm (9.5 ft. lb.)
Fastening screw, M8 x 25 → Tightening torque: 23 Nm (17 ft. lb.)
