Group 17 - Lubrication

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Oil pump:

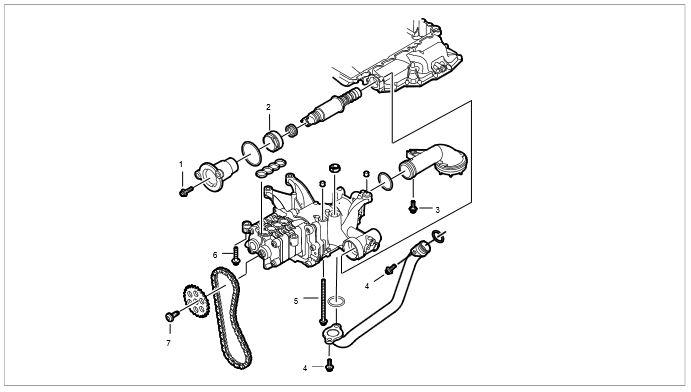

Fig 1: Identifying Oil Pump And Screws
G09819202Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. 1  - Fastening screw, M6 x 20 → Tightening torque: 13 Nm (9.5 ft. lb.)
  2. 2  - Cap screw, M36 → Tightening torque: 40 Nm (30 ft. lb.)
  3. 3  - Fastening screw, M6 x 25 → Tightening torque: 13 Nm (9.5 ft. lb.)
  4. 4  - Fastening screw → Tightening torque: 13 Nm (9.5 ft. lb.)
  5. 5  - Fastening screw, M6 x 95 → Tightening torque: 13 Nm (9.5 ft. lb.)
  6. 6  - Fastening screw, M6 x 30 → Tightening torque: 13 Nm (9.5 ft. lb.)
  7. 7  - Fastening screw on oil pump gear, M8 x 22 → Initial tightening: 20 Nm (15 ft. lb.)
  8. 7  - Fastening screw on oil pump gear, M8 x 22 → Torque angle: 85°+/-5°

Oil pan:

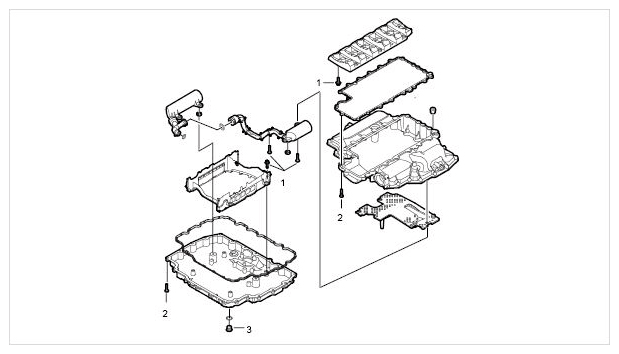

Fig 2: Identifying Oil Pan Components
G09819203Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Fastening screw, M6 x 20 → Tightening torque: 13 Nm (9.5 ft. lb.)
  2. Fastening screw, M6 x 25 → Tightening torque: 13 Nm (9.5 ft. lb.)
  3. Screw plug, M18 - replace seal → Tightening torque: 50 Nm (37 ft. lb.)

Tightening sequence for upper and lower part of oil pan:

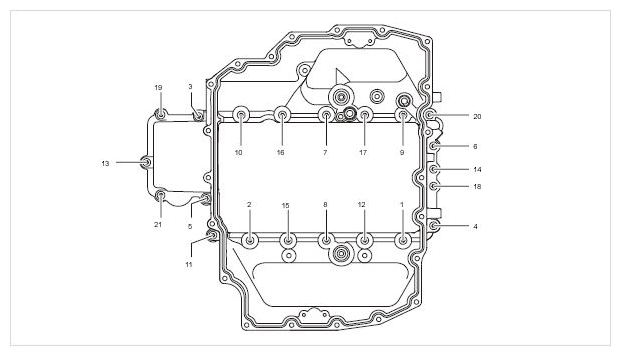

Fig 3: Upper Part Of Oil Pan Tightening Sequence
G09819204Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1-21  - Tightening sequence for screws in upper part of oil pan

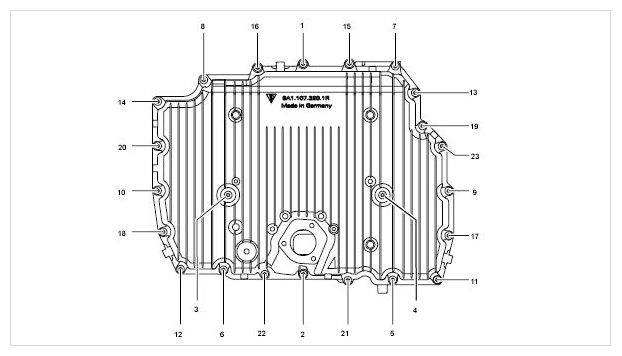

Fig 4: Lower Part Of Oil Pan Tightening Sequence
G09819205Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1-21  - Tightening sequence for lower part of oil pan

Oil guide module:

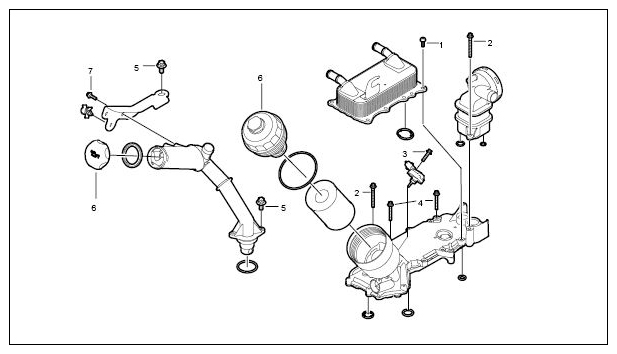

Fig 5: Identifying Oil Module Components
G09819206Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Fastening screw, M6 x 20 → Tightening torque: 13 Nm (9.5 ft. lb.)
  2. Fastening screw, M6 x 60 → Tightening torque: 13 Nm (9.5 ft. lb.)
  3. Fastening screw, M6 x 20 → Tightening torque: 13 Nm (9.5 ft. lb.)
  4. Fastening screw, M6 x 45 → Tightening torque: 13 Nm (9.5 ft. lb.)
  5. Fastening screw, M6 x 20 → Tightening torque: 13 Nm (9.5 ft. lb.)
  6. Oil filter cover - replace O-ring → Tightening torque: 25 Nm (19 ft. lb.)
  7. Fastening screw, M6 x 20 → Tightening torque: 13 Nm (9.5 ft. lb.)
