Group 15 - Cylinder Head, Valve Drive

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Cylinder Head:

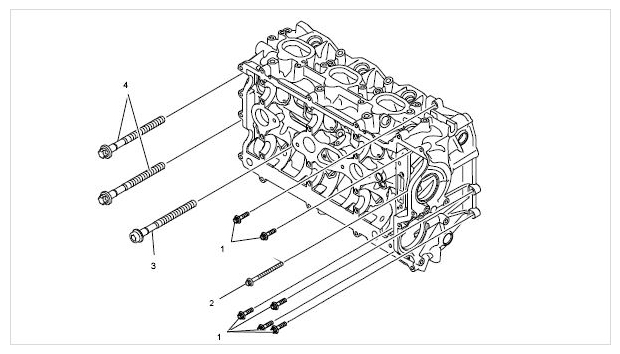

Fig 1: Identifying Cylinder Head Screws
G09819195Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Cylinder head screw, M6 x 25 → Tightening torque: 13 Nm (9.5 ft. lb.)
  2. Cylinder head screw, M6 x 80 → Tightening torque: 13 Nm (9.5 ft. lb.)
  3. Cylinder head screw, internal Torx, M12 x 1.5 x 140 → Initial tightening: 5 Nm (3.5 ft. lb.)  → Tightening torque: 50 Nm (37 ft. lb.)  Loosen all screws and then tighten them again → Initial tightening: 5 Nm (3.5 ft. lb.)  → Tightening torque: 12 Nm (9 ft. lb.)  → Torque angle: 60°  → Torque angle: 60°
  4. Cylinder head screw, external Torx, M12 x 1.5 x 140 → Initial tightening: 5 Nm (3.5 ft. lb.)  → Tightening torque: 50 Nm (37 ft. lb.)  Loosen all screws and then tighten them again → Initial tightening: 5 Nm (3.5 ft. lb.)  → Tightening torque: 12 Nm (9 ft. lb.)  → Torque angle: 60°  → Torque angle: 60°

    Tightening sequence for cylinder head:

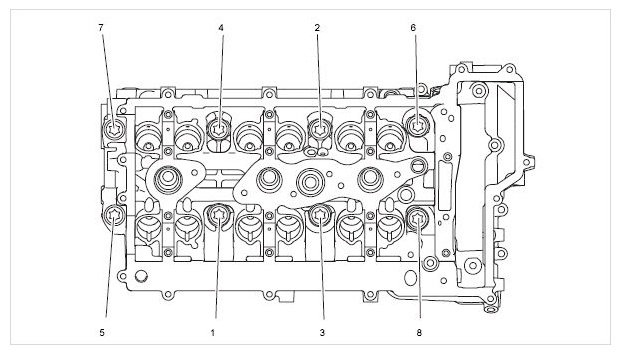

    Fig 2: Cylinder Head Screw Tightening Sequence
    G09819196Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Camshafts, bearing cover:

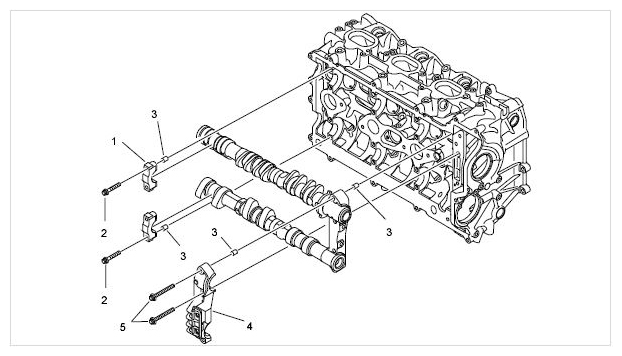

    Fig 3: Identifying Camshaft Bearing Covers
    G09819197Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Fastening screw on bearing cover, external Torx, M6 x 37 - observe tightening sequence → Initial tightening: 5 Nm (3.5 ft. lb.)  → Tightening torque: 5 Nm (3.5 ft. lb.)  → Torque angle: 50°
  2. Camshaft bearing cover
  3. Dowel sleeve
  4. Bearing saddle
  5. Fastening screw, external Torx, M6 x 55 → Tightening torque: 5 Nm (3.5 ft. lb.)  → Tightening torque: 5 Nm (3.5 ft. lb.)  → Torque angle: 50°

    Tightening sequence for camshaft bearing:

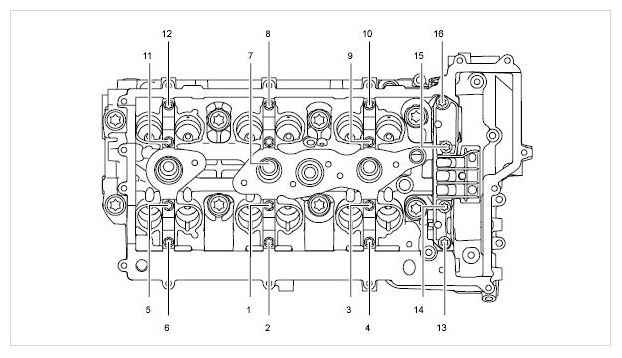

    Fig 4: Camshaft Bearing Cover Tightening Sequence
    G09819198Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Camshafts:

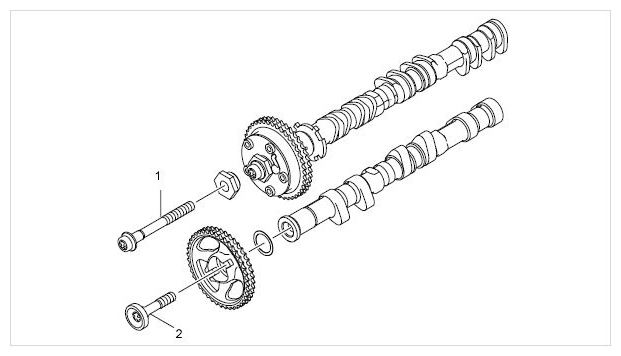

    Fig 5: Identifying Fastening Screws For Camshaft Controller/Sprocket
    G09819199Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Fastening screw, M12 x 110 (camshaft controller) → Tightening torque: 35 Nm (26 ft. lb.)  → Torque angle: 120°
  2. Fastening screws for camshaft timing gear → Tightening torque: 30 Nm (22 ft. lb.)  → Torque angle: 70°

Cylinder head cover:

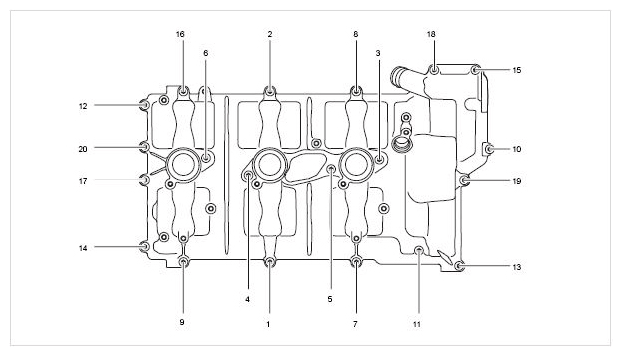

Fig 6: Identifying Cylinder Head Cover
G09819200Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1 - 20  - Re-tighten internal Torx screws 1 to 4 a second time → Tightening torque: 13 Nm (9.5 ft. lb.)

Spacer for cylinder bank 4-6:

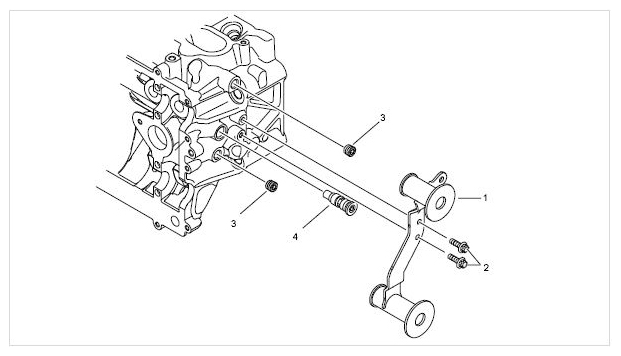

Fig 7: Identifying Spacer For Cylinder Bank 4-6
G09819201Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Spacer
  2. Torx screw → Tightening torque: 13 Nm (9.5 ft. lb.)
  3. Screw plug for secondary air duct → Tightening torque: 25 Nm (19 ft. lb.)
  4. Scavenging restrictor → Tightening torque: 3 Nm (2 ft. lb.)
