Group 13 - Crank Drive, Pistons

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

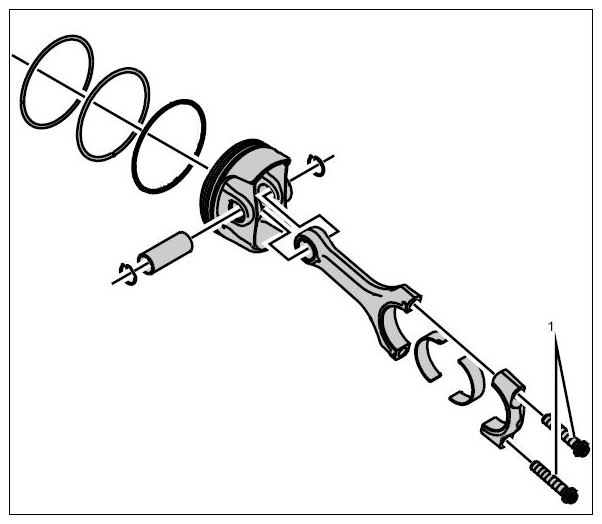

Fig 1: Identifying Connecting Rod Bolts

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Connecting rod bolts, M10 x 1.25 x 51 → Initial tightening: 20 Nm (15 ft. lb.) → Torque angle: 80°

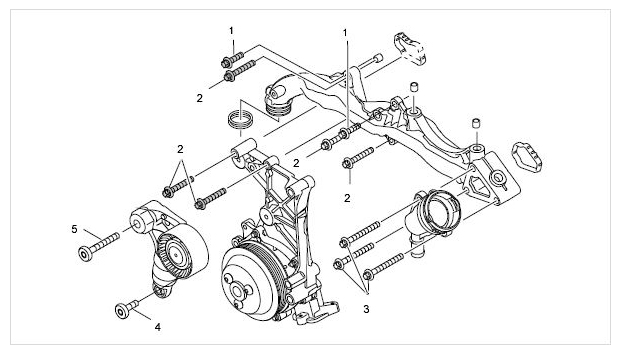

Fig 2: Identifying Belt Drive Components
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. Torx screw for unit carrier, M8 x 35 → Tightening torque: 33 Nm (24 ft. lb.)
2. Torx screw for unit carrier, M8 x 50 → Tightening torque: 33 Nm (24 ft. lb.)
3. Torx screw for unit carrier, M8 x 70 → Tightening torque: 33 Nm (24 ft. lb.)
4. Countersunk screw, M8 x 26 → Tightening torque: 23 Nm (17 ft. lb.)
5. Countersunk screw, M8 x 60 → Tightening torque: 23 Nm (17 ft. lb.)
