Removing ATF Pan

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Remove cross member.

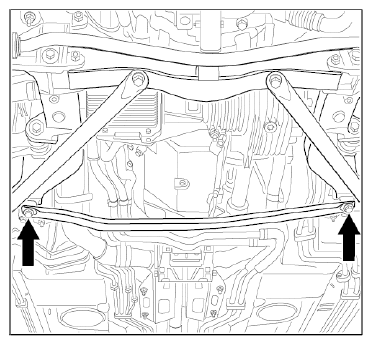

Fig 1: Locating Cross Member
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disengage coolant lines at the fastening points.

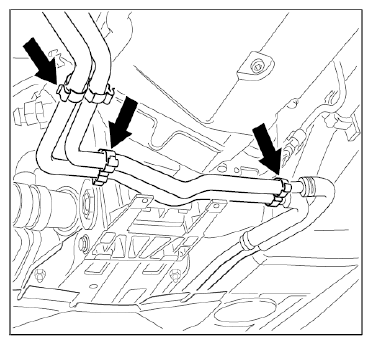

Fig 2: Locating Bracket For Coolant Lines
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove electric plug.

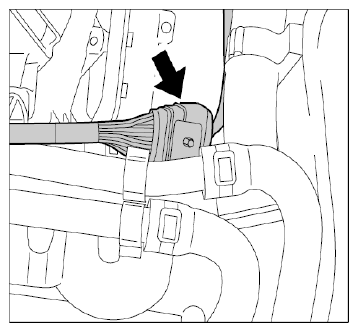

Fig 3: Locating Electric Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disengage cable and vacuum line from the retaining clips of the ATF pan.
Loosen screws crosswise and remove ATF pan.

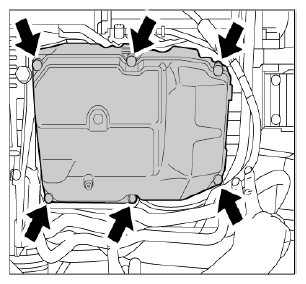

Fig 4: Locating ATF Pan
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
