Removing ATF Pan

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

Although you have drained the ATF oil, there will still be residual oil in the ATF pan.

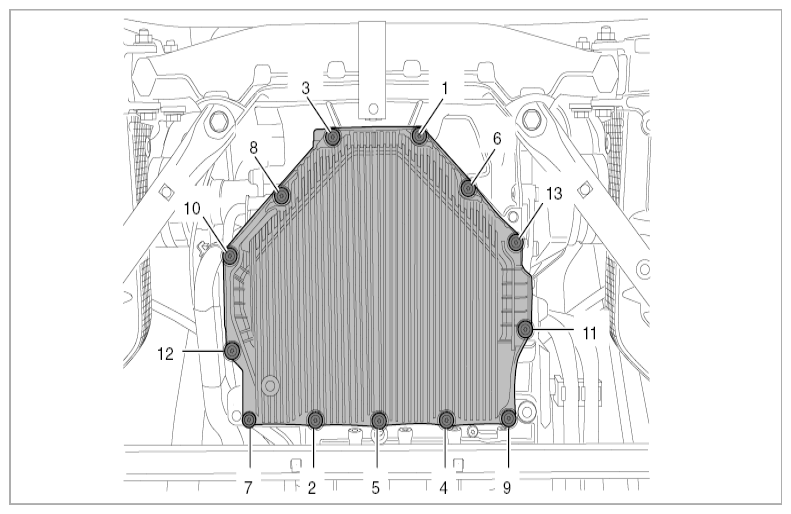

Fig 1: Tightening Sequences For PDK Transmission Oil Pan Bolts

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosen all screws on the ATF pan -1- except for Nos. 1 and 3 in reverse tightening sequence and then unscrew them.

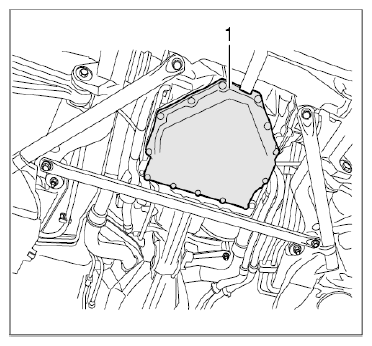

Fig 2: Identifying ATF Pan
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Carefully lever off the ATF pan -1- on the opposite side to screws 1 and 3 and catch any oil that overflows.
Unscrew screws 1 and 3 on the ATF pan -1- and carefully remove the ATF pan.
