Draining ATF
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Fill level too low
- Risk of damage to components.
→ Do not start the engine.
→ Do not tow the vehicle.
WARNING:
Hot fluid
- Danger of scalding
→ Let the fluid cool down.
→ Wear personal protective gear.
WARNING:
Hot fluid
- Danger of scalding
→ Let the fluid cool down.
→ Wear personal protective gear.
WARNING:
Hot fluid
- Danger of scalding
→ Let the fluid cool down.
→ Wear personal protective gear.

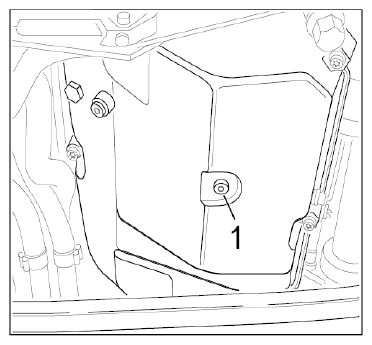

- Unscrew drain plug -1- and drain ATF.
- Replace sealing ring for drain plug and tighten screw. → Tightening torque: 22 Nm (16 ft. lb.) .
