Installing ATF Pan

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Clean ATF pan and place on transmission with new seal.
Screw in screws and tighten them crosswise. → Tightening torque: 8 Nm (6 ft. lb.)
Engage cable and vacuum line in the retaining clips of the ATF pan.
Fit electric plugs.
Engage the coolant lines at the fastening points.

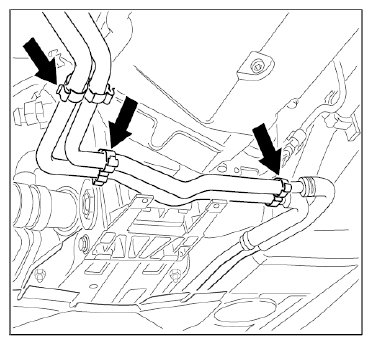

Fig 1: Bracket For Coolant Lines
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install cross member.

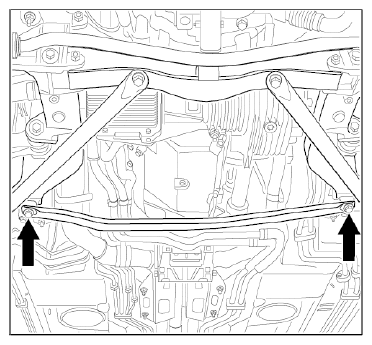

Fig 2: Locating Cross Member
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Cross member		Tightening torque	65 Nm (48 ft. lb.)
