Removing The Automatic Transmission

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

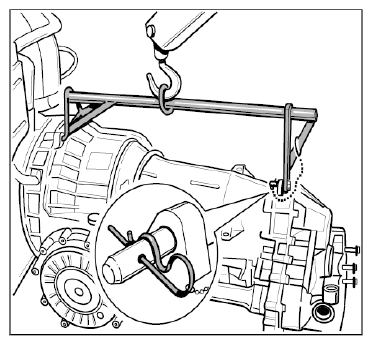

  1. Unscrew the two upper fastening screws on the converter bell housing and suspend the transmission from the workshop crane using a Retaining Bar 9674  .
    Fig 1: Removing Automatic Transmission
    G09825010Courtesy of PORSCHE CARS NORTH AMERICA, INC.

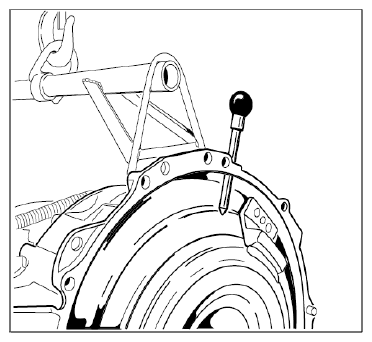

  2. Unscrew the remaining fastening screws and pull the transmission out until a Locating Pin 9595  can be inserted for holding the converter.
    Fig 2: Identifying Locating Pin
    G09825011Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Remove transmission together with converter.
