Removing Automatic Transmission: Dismantling

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disengage B+ wire on bracket.
  2. Pull off vacuum line for flat-seat valve on branch piece.
  3. Disconnect coolant supply hose on pipe.

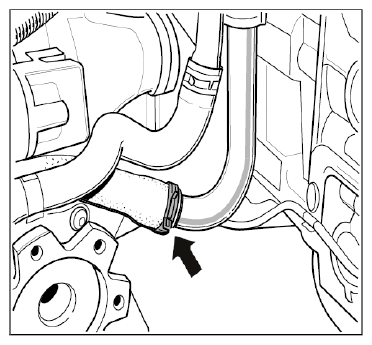

    Fig 1: Locating Coolant Hose
    G09825003Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Disengage coolant hoses from support.

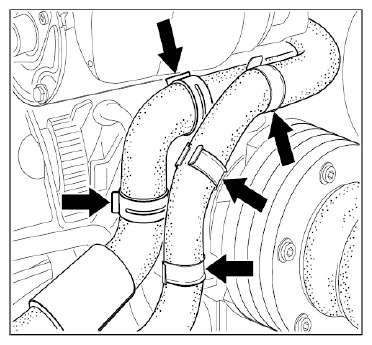

    Fig 2: Locating Coolant Hoses And Support
    G09825004Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Remove crash support.

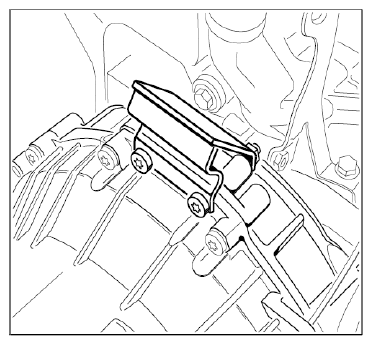

    Fig 3: Identifying Crash Support
    G09825005Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. Remove drive belt. → 137819 REMOVING AND INSTALLING DRIVE BELT - section on "Removing"
