Securing Torque Converter

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Rotate engine to TDC mark.

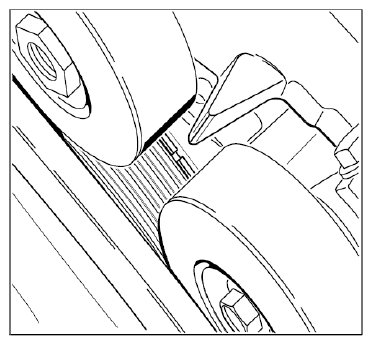

Fig 1: Identifying TDC Marking
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw in two converter fastening screws through the starter opening.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Torque converter	Fastening screw between torque converter and driver plate	Tightening torque	39 Nm (29 ft. lb.)

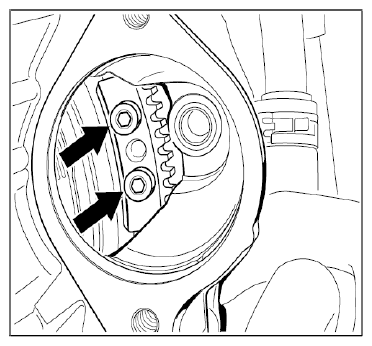

Fig 2: Locating Converter Screw Connections

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Turn the engine a further 120° clockwise.

Screw in two converter fastening screws through the starter opening.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Torque converter	Fastening screw between torque converter and driver plate	Tightening torque	39 Nm (29 ft. lb.)

Fig 3: Locating Converter Screw Connections

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Turn the engine a further 120° clockwise.

Screw in two converter fastening screws through the starter opening.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Torque converter	Fastening screw between torque converter and driver plate	Tightening torque	39 Nm (29 ft. lb.)

Fig 4: Locating Converter Screw Connections

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
