Refitting Transmission
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

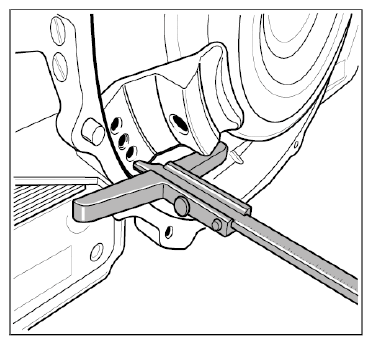

- Check installation depth of the converter using a depth gauge. The installation depth must be approx. 15 mm.
- Additional Support 9111/6 must be inserted all the way into the engine retainer plate.
- Push converter into the transmission until the Locating Pin 9595 touches the toothed ring on the flywheel.
- Locating Pin 9595 must then be removed.
- Push the transmission all the way in and bolt it to the intermediate housing using four fastening screws.

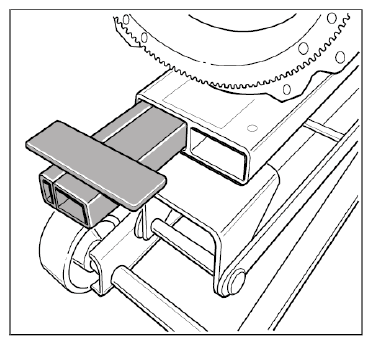

Location Description Type Basic value Tolerance 1 Tolerance 2 Automatic transmission Fastening screw between transmission and intermediate housing Tightening torque 23 Nm (17 ft. lb.) - Place a wooden support from the spacer 9111/4 to the additional support 9111/6 , position additional support 9111/6 and lower the transmission.
- Holder 9674
must then be removed and remaining fastening screws screwed in.
Location Description Type Basic value Tolerance 1 Tolerance 2 Automatic transmission Fastening screw between transmission and intermediate housing Tightening torque 23 Nm (17 ft. lb.)
