Assembly Work

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Guide in drive belt. → 137819 REMOVING AND INSTALLING DRIVE BELT - section on "Installing"

Fit crash support.

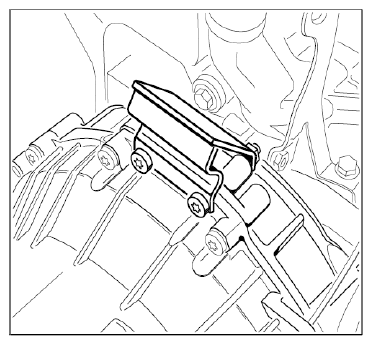

Fig 1: Fitting Crash Support

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Crash support	Fastening screw between intermediate housing and crash support	Tightening torque	23 Nm (17 ft. lb.)

Engage coolant hoses in support.

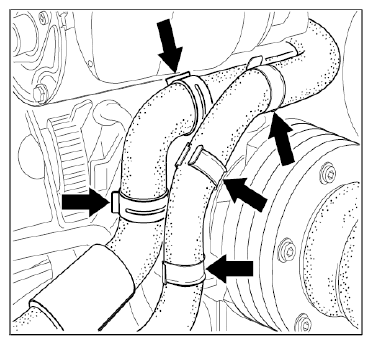

Fig 2: Locating Coolant Hoses And Support
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit coolant supply hose with spring band clamp.

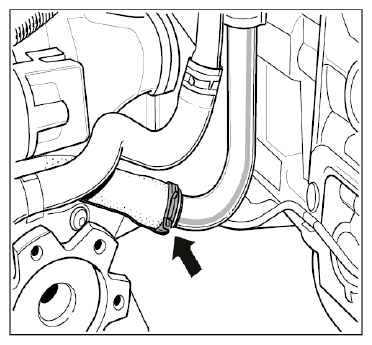

Fig 3: Fitting Coolant Supply Hose With Spring Band Clamp
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Attach vacuum line for flat-seat valve on branch piece.
Engage B+ wire on bracket.
