Mounting Porsche Doppelkupplung (PDK)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Mechanical overload of components

Component will be damaged irreparably

→ Observe guidelines for assembly and disassembly

Mount the Porsche Doppelkupplung.
Information

After replacing the Porsche Doppelkupplung (PDK) or after carrying out repairs in the Porsche Doppelkupplung (PDK), the transmission control unit must be calibrated using PIWIS Tester II 9818 .

Information

Replace flange screws if necessary.

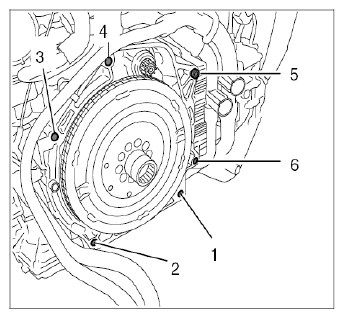

1. 1.1. Mount the Porsche Doppelkupplung.
  Screw in and tighten screws -4- first, then -3, 5, 6- and finally -1, 2- .

  → Tightening torque: 85 Nm (63 ft. lb.)

  Fig 1: Identifying Porsche Doppelkupplung Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

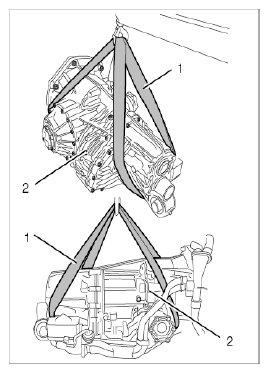

2. 1.2. Remove restraining strap.

  Fig 2: Removing Restraining Strap
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

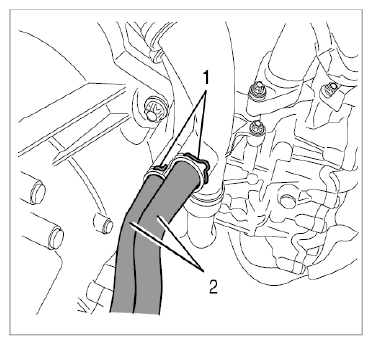

Connect cooling water hoses.
Connect cooling water hoses -2- by attaching the Henn couplings and engaging the safety clips -1- .

Fig 3: Identifying Cooling Water Hoses
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- The coolant hoses must lock with an audible click when pushed into the plug-in couplings.

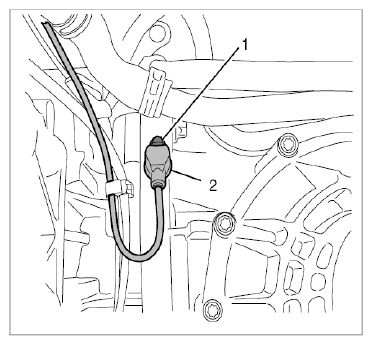

Fit the speed sender.
Insert speed sender -2- and screw in and tighten screw -1- .

→ Tightening torque: 10 Nm (7.5 ft. lb.)

Fig 4: Identifying Speed Sender
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

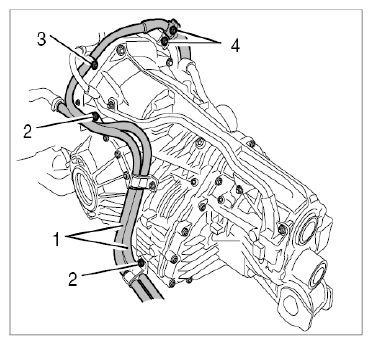

Install cooling water tubes on Porsche Doppelkupplung.

Fig 5: Identifying Cooling Water Tubes
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 4.1. Fit cooling water tubes -2- . Slide cooling water hoses onto the cooling water tubes -2- and fit clamps -4- on the cooling water hoses.
2. 4.2. Screw in and tighten screws -2- for cooling water tubes -1- .
  → Tightening torque: 10 Nm (7.5 ft. lb.)
3. 4.3. Close bracket -3- for cooling water tubes.

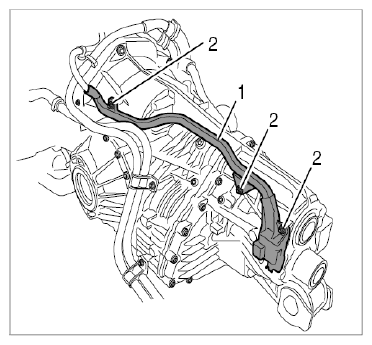

Fit B+ cable duct.
Fit B+ cable duct -1- by screwing in and tightening the M6 screws -2- .

→ Tightening torque: 10 Nm (7.5 ft. lb.)

Fig 6: Identifying B+ Cable Routing On Transmission
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
