Removing Sealing Ring For Parking Lock Shaft

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Disengage parking lock cable on the PDK transmission.

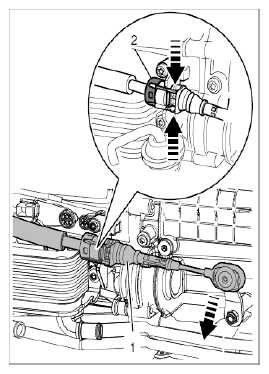

Fig 1: Removing Parking Lock Cable
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Press ball head of parking lock cable -1- off the parking lock lever.
2. 1.2. Release parking lock cable -1- at the bracket by pressing the locking lugs -2- together and pull it out.
Move cooling water hoses into position.
Take cooling water hoses out of the retaining clips and position them in such a way that the parking lock lever is accessible.
Remove parking lock lever.
Unscrew M8 nut, loosen parking lock lever from the parking lock shaft and remove it.
Remove sealing ring for parking lock shaft.
Pierce the sealing ring for the parking lock shaft with a small screwdriver and lever it out.

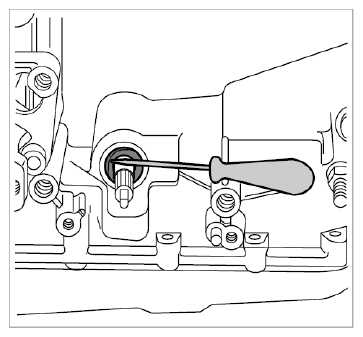

Fig 2: Levering Out Sealing Ring
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
