Installing Sealing Ring For Parking Lock Shaft

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Install sealing ring for parking lock shaft.
1. 1.1. Fit sealing ring for parking lock shaft.
  Apply a thin coat of Vaseline on the outer circumference and sealing lip of the sealing ring.

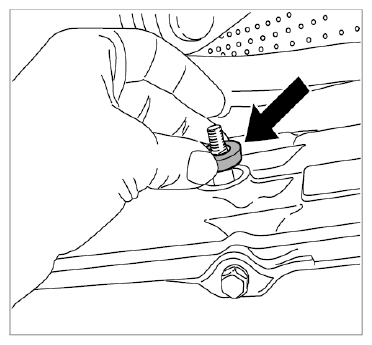

  Fig 1: Fitting Sealing Ring For Parking Lock Shaft
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 1.2. Tap in sealing ring for parking lock shaft -2- using the Pressure Sleeve T10174 or a long No. 13 wrench -1- until it fits perfectly into the PDK transmission.

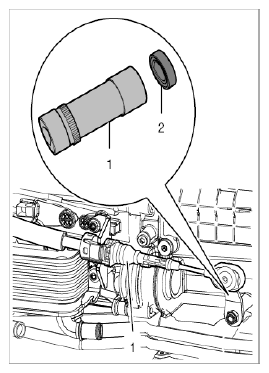

  Fig 2: Installing Sealing Ring For Parking Lock Shaft
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install parking lock shaft.
Fit parking lock lever and press it onto the parking lock shaft. Then, screw on and tighten the M8 nut.

→ Tightening torque: 16 Nm (12 ft. lb.)
Secure cooling water hoses in place in the retaining clips.
Engage parking lock cable on the PDK transmission.

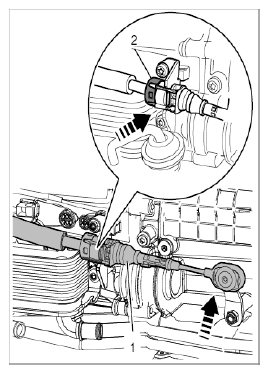

Fig 3: Engaging Parking Lock Cable
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 4.1. Check that the gear selector on the selector support is in position "P" and is locked.
2. 4.2. Check that the transmission parking lock is fully engaged.
3. 4.3. Fit the parking lock cable -1- on the bracket, press it in and engage it.
4. 4.4. Press ball head of parking lock cable -1- onto the parking lock lever.
  NOTE: The parking lock cable must only be connected without preload.
