Removing Tiptronic Control Module (Also Referred To Generally As Control Unit Below)

→ Prior to disconnecting the control unit, switch off ignition and remove ignition key.

→ Ensure that the power supply is not interrupted during programming.

→ Connect a battery charger with a current rating of at least → Nominal value: 40 A  to the vehicle battery.

→ Prior to disconnecting the control unit, switch off ignition and remove ignition key.

→ Ensure that the power supply is not interrupted during programming.

→ Connect a battery charger with a current rating of at least → Nominal value: 40 A  to the vehicle battery.

→ Prior to disconnecting the control unit, switch off ignition and remove ignition key.

→ Ensure that the power supply is not interrupted during programming.

→ Connect a battery charger with a current rating of at least → Nominal value: 40 A  to the vehicle battery.

→ Prior to disconnecting the control unit, switch off ignition and remove ignition key.

→ Ensure that the power supply is not interrupted during programming.

→ Connect a battery charger with a current rating of at least → Nominal value: 40 A  to the vehicle battery.

→ Prior to disconnecting the control unit, switch off ignition and remove ignition key.

→ Ensure that the power supply is not interrupted during programming.

→ Connect a battery charger with a current rating of at least → Nominal value: 40 A  to the vehicle battery.

Information

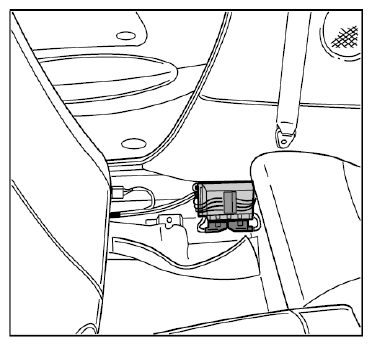

• The control unit is located in the passenger compartment on the right at the B-pillar in front of the rear seat well.
  Fig 1: Identifying Control Unit Installation Position

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
• The ignition key must be removed before starting the assembly work.
• If the Tiptronic control module is replaced, observe the points under programming/coding the control unit.

  → 373019 REMOVING AND INSTALLING TRANSMISSION CONTROL UNIT  - chapter on "programming"

  → 373019 REMOVING AND INSTALLING TRANSMISSION CONTROL UNIT  - chapter on "coding"

1. Unscrew lower fastening screw for the seat belt.
2. Disengage floor covering at the support and lay it in the vehicle interior.

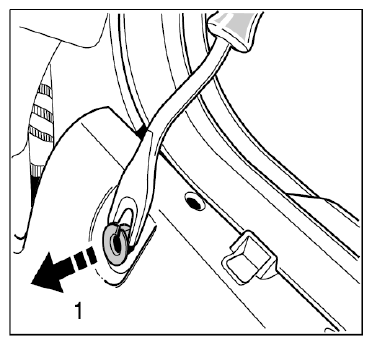

3. Unlock locating peg -1-  of the support using the commercially available disassembly tool Disassembly Tool, Universal Nr. 21  .
   Fig 2: Unlocking Locating Peg Using Removal Tool

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

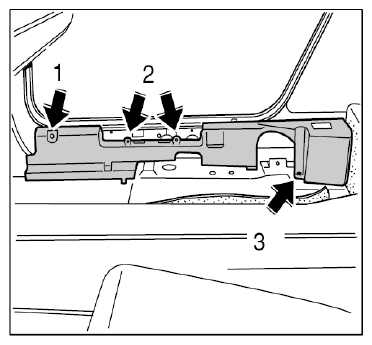

4. Unscrew fastening screws -2-  and nuts -3-  and carefully pull the support up and out of the retaining points.
   Fig 3: Unscrewing Fastening Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

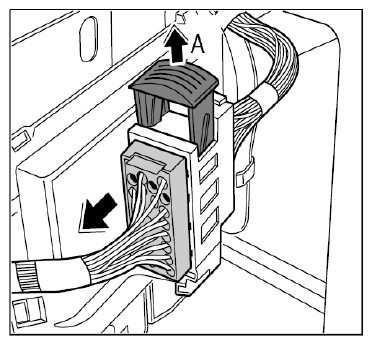

5. Unlock and disconnect the electrical plug connection.
   Fig 4: Releasing Electrical Plug Connection

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

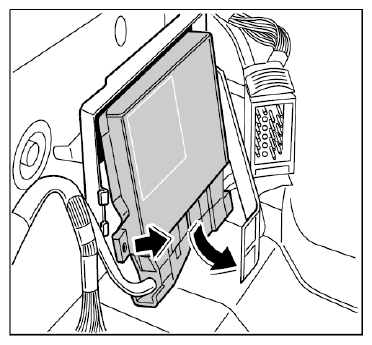

6. Disengage retaining bar -4-  .
   Fig 5: Disengaging Retaining Clip

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Pull control unit out of the support and pull it down and out at an angle.

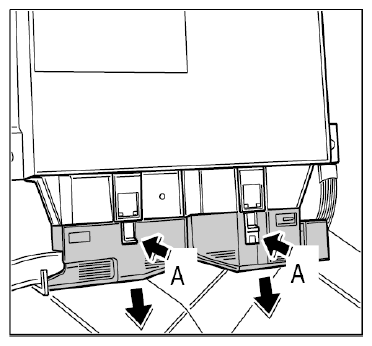

8. Press locking tabs -A-  and disconnect plug connections from the control unit.
   Fig 6: Releasing Electrical Connector

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
