Installing Tiptronic Control Unit (Also Referred To Generally As Control Unit Below)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Voltage drop

Risk of irreparable damage to control unit
Risk of damage to control unit
Fault entries in the control unit
Coding in the control unit is aborted
Malfunctions in control unit, even during programming

→ Prior to disconnecting the control unit, switch off ignition and remove ignition key.

→ Ensure that the power supply is not interrupted during programming.

→ Connect a battery charger with a current rating of at least → Nominal value: 40 A to the vehicle battery.

NOTE: Voltage drop

Risk of irreparable damage to control unit
Risk of damage to control unit
Fault entries in the control unit
Coding in the control unit is aborted
Malfunctions in control unit, even during programming

→ Prior to disconnecting the control unit, switch off ignition and remove ignition key.

→ Ensure that the power supply is not interrupted during programming.

→ Connect a battery charger with a current rating of at least → Nominal value: 40 A to the vehicle battery.

NOTE: Voltage drop

Risk of irreparable damage to control unit
Risk of damage to control unit
Fault entries in the control unit
Coding in the control unit is aborted
Malfunctions in control unit, even during programming

→ Prior to disconnecting the control unit, switch off ignition and remove ignition key.

→ Ensure that the power supply is not interrupted during programming.

→ Connect a battery charger with a current rating of at least → Nominal value: 40 A to the vehicle battery.

NOTE: Voltage drop

Risk of irreparable damage to control unit
Risk of damage to control unit
Fault entries in the control unit
Coding in the control unit is aborted
Malfunctions in control unit, even during programming

→ Prior to disconnecting the control unit, switch off ignition and remove ignition key.

→ Ensure that the power supply is not interrupted during programming.

→ Connect a battery charger with a current rating of at least → Nominal value: 40 A to the vehicle battery.

NOTE: Voltage drop

Risk of irreparable damage to control unit
Risk of damage to control unit
Fault entries in the control unit
Coding in the control unit is aborted
Malfunctions in control unit, even during programming

→ Prior to disconnecting the control unit, switch off ignition and remove ignition key.

→ Ensure that the power supply is not interrupted during programming.

→ Connect a battery charger with a current rating of at least → Nominal value: 40 A to the vehicle battery.

Switch ignition off and remove ignition key.

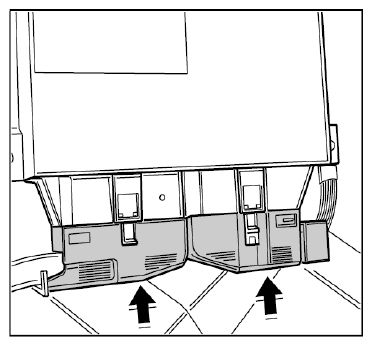

Connect the electric plug connection.

Fig 1: Connecting Electrical Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

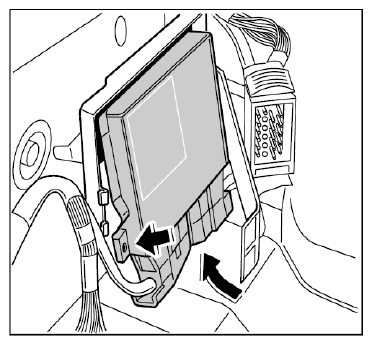

Insert control unit into the support and engage retaining clip.

Fig 2: Inserting Control Unit Into Support
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

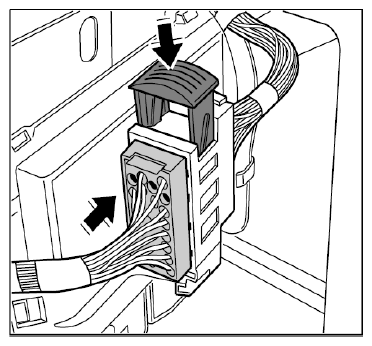

Connect and lock the electric plug connection.

Fig 3: Connecting Electric Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

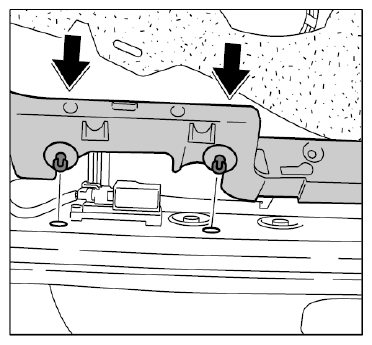

Position the support and engage in lower side member.

Fig 4: Positioning Support And Engaging In Lower Side Member
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

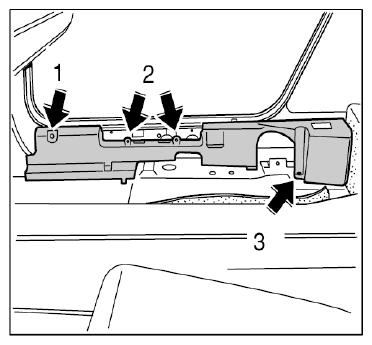

Push in the locating peg -1- of the support and check it is seated correctly.

Fig 5: Pushing In Locating Peg
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tighten the fastening nut -3- and fastening screws -2- . → Tightening torque: 7.2 Nm
Lay the floor covering over the support and engage.
