Installing Tiptronic Rocker Switch

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

The graphics below show how to install the left rocker switch. The description also applies for the right rocker switch.

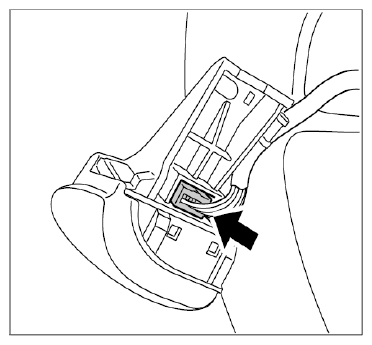

Insert electric plug connection into rocker switch until the plug engages firmly.

Fig 1: Inserting Electric Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

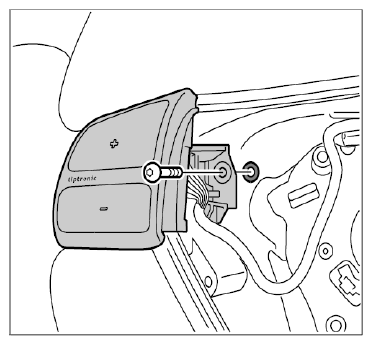

Insert rocker switch and washer into steering wheel and screw in fastening screw.

Fig 2: Fitting Rocker Switch And Washer
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Fastening screw	Fastening screw between rocker switch and steering wheel	Tightening torque	3 Nm (2 ft. lb.)
