Removing Tiptronic Rocker Switch

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

The graphics below show how to remove the left rocker switch. The description also applies for the right rocker switch.

Unscrew fastening screw for rocker switch.

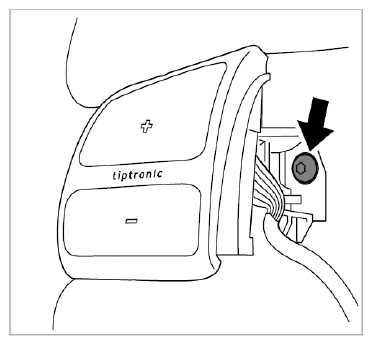

Fig 1: Locating Rocker Switch Fastening Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Carefully lever out rocker switch using a screwdriver. Watch out for the washer -A- when levering out the rocker switch.

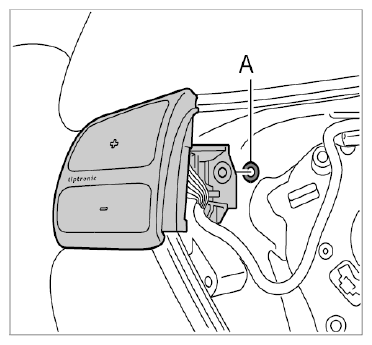

Fig 2: Identifying Rocker Switch Washer
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unlock and disconnect the electric plug connection.

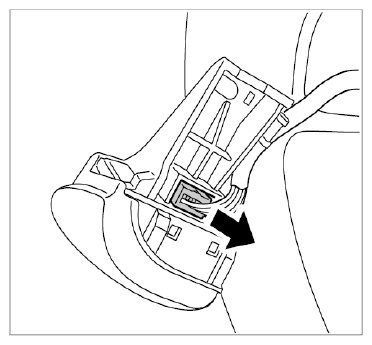

Fig 3: Pulling Out Electric Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
