Removing Selector Lever Cable From Transmission

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

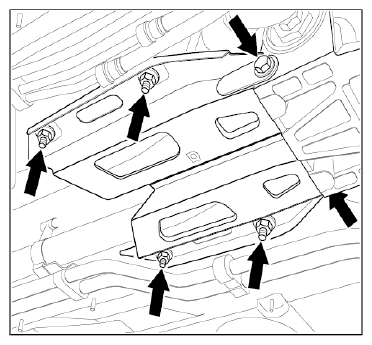

Remove transmission support.

Fig 1: Locating Transmission Support
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

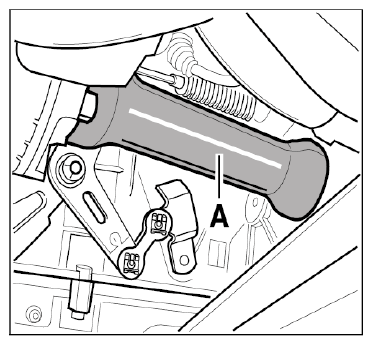

Remove plastic cover -A- around pinion shaft.

Fig 2: Identifying Pinion Shaft Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

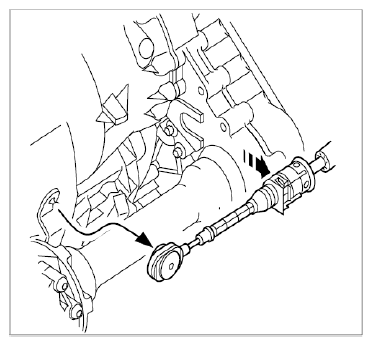

Lever off selector lever cable on transmission control with a screwdriver and disengage selector lever cable from support.

Fig 3: Disengaging Selector Lever Cable
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
